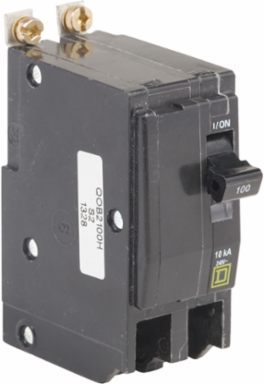

Square D QOB2100H Miniature Circuit Breaker 100A 2 Pole 240VAC Bolt-On 10kA
Square D QOB2100H Miniature Circuit Breaker 100A 2 Pole 240VAC Bolt-On 10kA
- MPN: QOB2100H
- UPC: 785901326496
- PPN: SCH-QOB2100H
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$311.45/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Current Rating
- 100 A
- Interrupt Rating
- 10 kA
- Mounting Type
- Bolt-on
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N.m
- Width
- 38 mm
- Net Weight
- 0.322 kg
- Compliance
- RoHS Compliant with Exemptions
- Ambient Rating
- 40 °C
- Halogen Content
- Halogen free
- Product Type
- Miniature circuit-breaker
Voltage120/240 V AC
Number of Poles2
Circuit Breaker TypeStandard
Wire SizeAWG 4 to AWG 2/0 copper or aluminum
Height89 mm
Depth74 mm
Circuit Breaker ApplicationHACR rated
CertificationsUL Listed, CSA Certified
Mercury FreeYes
Range Of ProductQO
