Square D QH325 Mini Circuit Breaker 25A 3 Pole 120/240VAC 65kA Plug-In
Square D QH325 Mini Circuit Breaker 25A 3 Pole 120/240VAC 65kA Plug-In
- MPN: QH325
- UPC: 785901362364
- PPN: SCH-QH325
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$688.48/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 65kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 25 A
- Interrupt Rating
- 65 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Type
- Standard
- Electrical Connection
- Pressure plate
- Tightening Torque
- 4.6 N.m

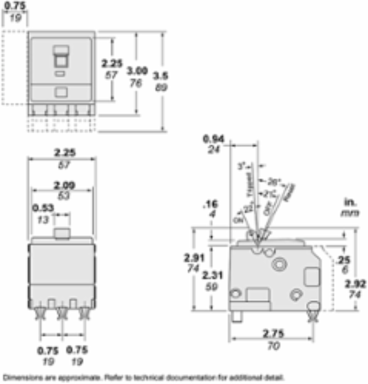

- Width
- 57 mm
- Net Weight
- 0.386 kg
- Ambient Air Temperature For Operation
- 40 °C
- Mercury Free
- Yes
- REACH Regulation
- Contains SVHC above threshold
Voltage120/240 V AC
Number of Poles3P
Mounting TypePlug-in
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Product CertificationsUL Listed, CSA Certified
Toxic Heavy Metal FreeYes
China RoHS RegulationOut of RoHS scope - info only
