Square D QHB325 Mini Circuit Breaker 25A 3 Pole 120/240VAC 65kA Bolt-On Mount
- MPN: QHB325
- UPC: 785901362333
- PPN: SCH-QHB325
CAD
$1898.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 25A 3 Pole 120/240VAC 65kA Bolt-On Mount
Documentation & Downloads
Specifications
Additional
- Rated Current
- 25 A
- Operational Voltage
- 120/240 V AC, 120 V AC, 240 V AC
- Mounting Type
- Bolt-On
- Electrical Connection
- Pressure Plate
- Wire Size
- AWG 14...AWG 8 copper or aluminum

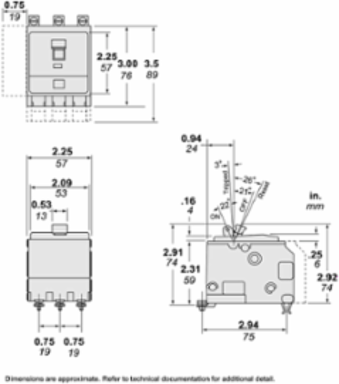

- Dimensions (HxWxD)
- 76 mm x 57 mm x 74 mm
- Ambient Operating Temperature
- 40 C
- Country of Origin
- Mexico
- Halogen Content
- Halogen Free
- Mercury Free
- Yes
Poles3
Breaking Capacity65 kA 120/240 V AC 50/60 Hz, 65 kA 120 V AC 50/60 Hz, 65 kA 240 V AC 50/60 Hz
Circuit Breaker TypeStandard
Circuit Breaker ApplicationHACR Rated
Tightening Torque4.6 N m
Net Weight0.390 kg
Product CertificationsUL Listed, CSA Certified, RoHS Compliant with Exemptions
Warranty18 months
Toxic Heavy Metal FreeYes
