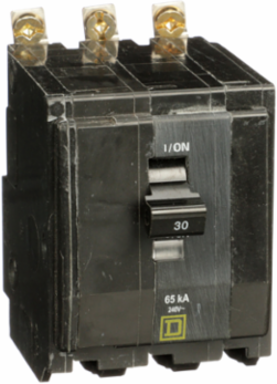

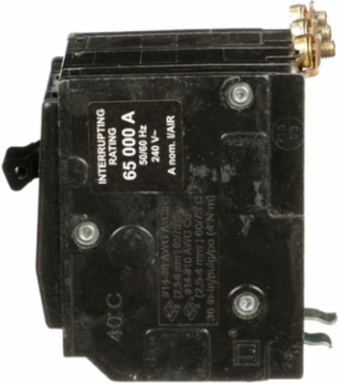

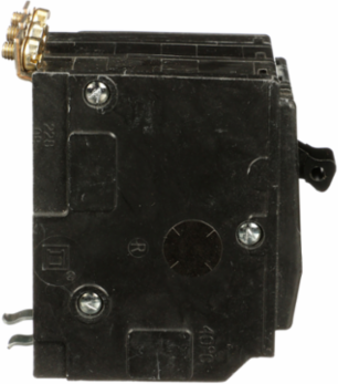

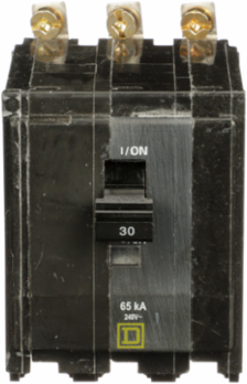

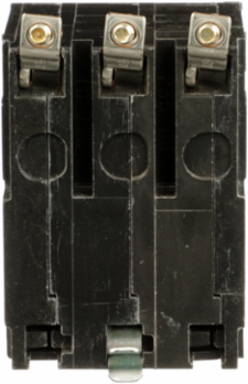

Square D QHB330 Mini Circuit Breaker 30A 3 Pole 120/240VAC 65kA Bolt-On Mount
Square D QHB330 Mini Circuit Breaker 30A 3 Pole 120/240VAC 65kA Bolt-On Mount
- MPN: QHB330
- UPC: 785901341673
- PPN: SCH-QHB330
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1289.86/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Current Rating
- 30 A
- Interrupt Rating
- 65 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Type
- standard
- Electrical Connection
- pressure plate
- Height
- 76 mm (2.99 in)
- Depth
- 74 mm (2.91 in)
- Mounting Type
- bolt-on
- Wire Size
- AWG 14...AWG 8 copper or aluminum
- Ambient Rating
- 40 °C (104 °F)
- REACH Regulation
- Reference contains SVHC above threshold
- Toxic Heavy Metal Free
- Yes
- Halogen Content Performance
- Halogen free
- Sustainable Offer Status
- Green Premium product
Voltage Rating120/240 V AC
Number of Poles3P
Circuit Breaker ApplicationHACR rated
Tightening Torque4.6 N.m
Width57 mm (2.24 in)
Net Weight0.381 kg (0.84 lb)
Number of Panel Spaces3
Product CertificationsUL listed, CSA
EU RoHS DirectiveCompliant with Exemptions
China RoHS RegulationOut of China RoHS scope
Mercury FreeYes
Country of OriginMexico
