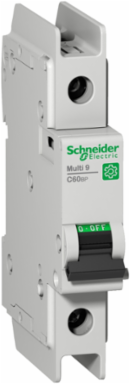

Schneider Electric M9F42103 Multi9 C60BP Miniature Circuit Breaker, 1 Pole, 3A, C Curve, IP20

  • MPN: M9F42103
  • PPN: SCH-M9F42103
  • UNSPSC: 39121603
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $54.43

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 3A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Features

    • The Schneider M9F42115 is a high-performance Multi9 C60BP miniature circuit breaker designed for both branch circuit protection and supplemental protection. Unlike standard residential breakers, the Multi9 line is engineered to meet multiple international standards (UL 489, CSA, IEC), making it the "gold standard" for Canadian OEMs and panel builders who export machinery globally.
    • This is a 3-Amp, single-pole breaker rated for up to 277V AC (or 480Y/277V systems). Its 3A rating is the most common size for protecting individual control circuits, lighting branches, and localized power outlets in industrial automation cabinets and specialized laboratory equipment.
    • Featuring a C-Curve magnetic trip profile, this breaker is designed to trip at 7 to 10 times the rated current. This provides the necessary "headroom" to handle the moderate inrush currents found in fluorescent lighting, small motors, and control transformers, preventing nuisance tripping while still reacting instantly to dangerous short circuits.
    • The M9F42115 boasts a high interrupting rating of 10,000 AIR (Amps Interrupting Rating) at 277V AC. This ensures the breaker can safely clear significant faults without internal damage, protecting your downstream equipment and ensuring the overall reliability of your electrical distribution system.
    • Designed with a slim 18mm width, this breaker maximizes density in crowded control panels. It features a robust DIN rail clip for fast, tool-free installation and is compatible with Multi9 busbar systems, significantly reducing wiring time and complexity during the assembly of large-scale industrial projects.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Depth72 mm

    Physical Attributes

    ColorGray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Ics Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 240 V AC15 kA 75 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 60 V DC
    Line Rated Current3 A 25 °C EN/IEC 60947-2
    Uimp Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
    Ue Rated Operational Voltage240 V AC 50/60 Hz, 415 V AC 50/60 Hz60 V DC
    Ui Rated Insulation Voltage500 V AC EN/IEC 60947-2

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Network TypeAC, DC
    Connections Terminalstunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
    Carbon Footprint Of The Distribution Phase A40.017651924411548354, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.005727651257091559
    Carbon Footprint Of The Use Phase B2 B3 B4 B610 kg CO2 eq., 10.232961538461536
    Local Publishable Date2026-07-13
    Device TypeLV equipment - Low voltage circuit breaker
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1645
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationCommercial
    Connection Pitch18 mm between devices
    Control Typetoggle
    Device Applicationdistribution
    Electrical Durability10000 cycles
    Local SignallingON/OFF indication
    Mechanical Durability20000 cycles
    Mounting SupportDIN rail
    Number Of Protected Poles1
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeminiature circuit-breaker
    RangeMulti9
    ReturnabilityYes
    Suitability For Isolationyes EN/IEC 60947-2
    Tightening Torque2.5-2.5 N.m top or bottom
    Total Power Losses1.9 W
    Tropicalisation2 IEC 60068-1
    Rated Current 33 A
    Data Sourceextrapolated product
    Width Nominal18 mm
    Customs Code8536200040
    Earth Leakage Protectionwithout
    Silicone FreeNo
    Functional Unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional Unit Unitunité (unit)
    Recyclability Potential In %56
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Poles Description1P
    Certificate AgencyIEC, CCC, CSA, UL
    Carbon Footprint Of The End Of Life Phase C1 To C40.35419713481163834, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.8576524086075522
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdCOMMERCIAL
    Product Kit IdentifierN
    Contact Position Indicatoryes
    Curve CodeC
    Device Short NameC60BP
    Energy Efficiency OptimizedFalse
    Magnetic Tripping Limit8.5 x In +/- 20 % AC12 x In +/- 20 % DC
    Mounting Modeclip-on
    Number Of Poles1P
    Power Losses Per Pole1.9 W
    Product NameMulti9 C60
    Provision For Padlockingpadlockable
    Range Of ProductMulti9
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint12 kg CO2 eq.
    Trip Unit Technologythermal-magnetic
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Height Nominal103 mm
    Nbr. Of Units In Pkg.1
    Tsca RegulationDoes not contain Section 6H Chemical
    Halogen Free StatusHalogen free plastic parts product
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
    Halogene PerformanceHalogen free plastic parts product
    China Rohs RegulationX
    Mercury FreeYes
    Carbon Footprint11.508320614023177
    Ambient Air Temperature For Operation-30-70 °C-30-70 °C
    Eu Rohs DirectiveCompliant
    Ip Degree Of ProtectionIP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1304004EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Silicon FreeNo
    9 Mm Pitches2
    Environmental DisclosureENVPEP1304004EN
    Halogen Content PerformanceHalogen free plastic parts product
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeminiature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8EC000042
    ETIM 10EC000042
    ETIM 9EC000042
    Multi9 C60BP Miniature Circuit Breaker, 1 Pole, 3A, C Curve, IP20
