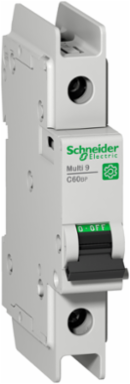

Schneider Electric M9F42106 Miniature Circuit Breaker 1P 6A C Curve IP20
- MPN: M9F42106
- PPN: SCH-M9F42106
CAD
$46.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- Specifically designed for the Multi9 C60BP product line, this 6-amp miniature circuit breaker (MCB) features a standard 18mm width per pole for seamless DIN rail integration. It is the ideal solution for machine builders and OEMs looking to optimize space in high-density control cabinets while maintaining full compatibility with Schneider Electric’s global modular system.
- Built with a "C" tripping curve, this unit is calibrated to handle moderate inductive loads and magnetic inrush currents between 7 to 10 times the rated current. This prevents annoying nuisance trips during the startup of small motors, fans, or control transformers, ensuring your automated processes stay online without sacrificing precision protection against short circuits.
- Rated for an ultimate breaking capacity of 10kA at 480Y/277V AC, this breaker is engineered to safely interrupt massive fault currents before they can damage downstream sensitive electronics. This high interrupting rating provides a critical safety buffer for industrial branch circuits, protecting your capital-intensive hardware from catastrophic thermal and magnetic failure.
- Carrying CE, CCC, and CSA markings alongside its UL listing, this circuit breaker is a truly "world-ready" component. By specifying this multi-standard part, you simplify your inventory management and ensure your machinery can be safely deployed and maintained in global markets without needing to redesign the electrical protection system for different regional standards.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 6 A 25C EN/IEC 60947-2
- Breaking Capacity
- 3 kA Icu 415 V AC EN/IEC 60947-2, 10 kA Icu 240 V AC EN/IEC 60947-2, 20 kA Icu 60 V DC EN/IEC 60947-2
- Magnetic Tripping Limit
- 8.5 x In 7 20% AC, 12 x In 7 20% DC
- Trip Unit Technology
- thermal-magnetic
- Width
- 18 mm
- Depth
- 72 mm
- Wire Stripping Length
- 14 mm for top or bottom connection
- Terminal Connection
- tunnel type terminal top or bottom, rigid and flexible AWG 18-8
- Degree of Protection
- IP20 (terminals), IP40 (modular enclosure)
- Storage Temperature
- -40 to 80 C
- Relative Humidity
- 95% at 55 C
- Product Certifications
- IEC, CCC, CSA, UL
- RoHS Directive
- Compliant with Exemptions
- Halogen Content
- Halogen free product
- Control Type
- toggle
- Contact Position Indicator
- yes
- Earth-Leakage Protection
- without
- Reach Regulation
- Contains SVHC above threshold
- Circularity Profile
- N/A
- Sustainable Offer Status
- Green Premium product
- Device Short Name
- C60BP
- Country of Origin
- France
Rated Operational Voltage240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 60 V DC
Tripping CurveC
Number of Poles1P
Mounting Typeclip-on DIN rail
Height103 mm
Pitches2 (9 mm each)
Tightening Torque2.5 N.m top or bottom
Pollution Degree3 EN/IEC 60947-2
Operating Temperature-30 to 70 C
Operating Altitude0 to 2000 m
Suitability for Isolationyes EN/IEC 60947-2
StandardsEN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
Mercury FreeYes
RangeMulti9
Local SignallingON/OFF indication
Product Typeminiature circuit-breaker
Tropicalisation2 IEC 60068-1
WeeeEU disposal compliant
Environmental DisclosureENVPEP1304004EN
Device Applicationdistribution
Colourgrey (RAL7035)
Provision for Padlockingpadlockable
