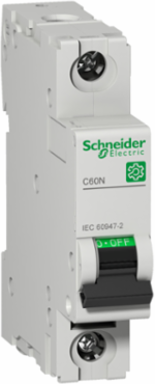

Schneider Electric M9F11110 Miniature Circuit Breaker MCB 1P 10A C Curve 10kA IP20
- MPN: M9F11110
- PPN: SCH-M9F11110
CAD
$46.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Miniature Circuit Breaker MCB 1P 10A C Curve 10kA IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 10 A 50 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC, 12 x In +/- 20 % DC
- Quality Labels
- UKCA, RCM
- [Ics] Rated Service Breaking Capacity
- 2.25 kA 75 % GB/T 14048.2 - 415 V AC 50/60 Hz, 15 kA 100 % GB/T 14048.2 - <= 72 V DC, 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz, 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC, 7.5 kA 75 % GB/T 14048.2 - 240 V AC 50/60 Hz
- Connections - Terminals
- tunnel type terminal top or bottom) 1-25 mm² - rigid, tunnel type terminal top or bottom) 1-25 mm² - flexible, tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.31215275873834447, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.7583166655250281
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1645
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 18 mm between devices
- Control Type
- toggle
- Device Application
- distribution
- Electrical Durability
- 10000 cycles
- Heat Dissipation
- 1.8-1.8 W 240 V - 10 A
- Local Signalling
- ON/OFF indication
- Mounting Mode
- clip-on
- Network Frequency
- 50/60 Hz
- Number Of Protected Poles
- 1
- Poles Description
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Returnability
- Yes
- Suitability For Isolation
- yes EN/IEC 60947-2
- Tightening Torque
- 2-2 N.m top or bottom
- Total Power Losses
- 1.9 W
- Tropicalisation
- 2 IEC 60068-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1304004EN
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 81 mm
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Earth-leakage Protection
- separate block
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Network TypeDC, AC
Certificate AgencyEAC, KC, CCC
[Ue] Rated Operational Voltage<= 72 V DC, <= 72 V DC240 V AC 50/60 Hz between phase and neutral, 415 V AC 50/60 Hz between phase and neutral, <= 72 V DC, <= 72 V DC
Carbon Footprint Of The Distribution Phase [A4]0.015556582367713985, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0050477600332455574
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]10 kg CO2 eq., 10.232961538461536
Local Publishable Date2024-01-31
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Curve CodeC
Device Short NameC60N
Energy Efficiency OptimizedFalse
Limitation Class3
Mechanical Durability20000 cycles
Mounting SupportDIN rail
Number Of Poles1P
Overvoltage CategoryIV
Power Losses Per Pole1.9 W
Product NameMulti9 C60
Provision For Padlockingpadlockable
Range Of ProductMulti9
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Utilisation Categorycategory A EN/IEC 60947-2
Rated Current 310 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %56
Width Nominal18 mm
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)102.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- No
- 9 Mm Pitches
- 2
- Environmental Disclosure
- ENVPEP1304004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Carbon Footprint11.35693125670972
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1304004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
