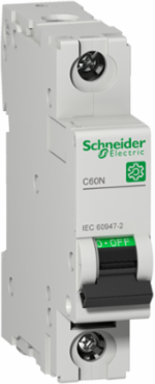

Schneider Electric M9F11104 Miniature Circuit Breaker C60N 1P 4A C Curve 10kA IP20
- MPN: M9F11104
- PPN: SCH-M9F11104
CAD
$56.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Miniature Circuit Breaker C60N 1P 4A C Curve 10kA IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 4 A 50 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC, 12 x In +/- 20 % DC
- Quality Labels
- UKCA, RCM
- [Ics] Rated Service Breaking Capacity
- 2.25 kA 75 % GB/T 14048.2 - 415 V AC 50/60 Hz, 15 kA 100 % GB/T 14048.2 - <= 72 V DC, 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz, 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC, 7.5 kA 75 % GB/T 14048.2 - 240 V AC 50/60 Hz
- Connections - Terminals
- tunnel type terminal top or bottom) 1-25 mm² - rigid, tunnel type terminal top or bottom) 1-25 mm² - flexible, tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3209927029451286, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.7648752638119188
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Contact Position Indicator
- yes
- Curve Code
- C
- Device Short Name
- C60N
- Energy Efficiency Optimized
- False
- Limitation Class
- 3
- Mechanical Durability
- 20000 cycles
- Mounting Support
- DIN rail
- Number Of Poles
- 1P
- Overvoltage Category
- IV
- Power Losses Per Pole
- 2 W
- Product Name
- Multi9 C60
- Provision For Padlocking
- padlockable
- Range Of Product
- Multi9
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A EN/IEC 60947-2
- Rated Current 3
- 4 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 26.28
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 81 mm
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Earth-leakage Protection
- separate block
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Network TypeDC, AC
Certificate AgencyEAC, KC, CCC
[Ue] Rated Operational Voltage<= 72 V DC, <= 72 V DC240 V AC 50/60 Hz between phase and neutral, 415 V AC 50/60 Hz between phase and neutral, <= 72 V DC, <= 72 V DC
Carbon Footprint Of The Distribution Phase [A4]0.015997133720630607, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.005190709008751903
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]11 kg CO2 eq., 10.771538461538462
Local Publishable Date2024-05-22
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1645
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Connection Pitch18 mm between devices
Control Typetoggle
Device Applicationdistribution
Electrical Durability10000 cycles
Heat Dissipation2.4-2.4 W 240 V - 4 A
Local SignallingON/OFF indication
Mounting Modeclip-on
Network Frequency50/60 Hz
Number Of Protected Poles1
Poles Description1P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeminiature circuit-breaker
RangeMulti9
ReturnabilityNo
Suitability For Isolationyes EN/IEC 60947-2
Tightening Torque2-2 N.m top or bottom
Total Power Losses2 W
Tropicalisation2 IEC 60068-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1304004EN
Pep Verification Date2023-03-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %56
Width Nominal18 mm
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)106.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- No
- 9 Mm Pitches
- 2
- Environmental Disclosure
- ENVPEP1304004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Carbon Footprint11.92733820313671
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1304004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Similar Products
