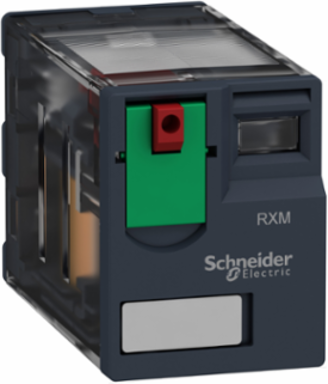

Schneider Electric RXM4AB1P7 miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 230V AC
Schneider Electric RXM4AB1P7 miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 230V AC
- MPN: RXM4AB1P7
- PPN: SCH-RXM4AB1P7
- UNSPSC: 39122325
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.55/ EA
Description
miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 230V AC
Features
- Fit to customer needs, coverage of most general control panel applications
- Easy to select, simple selection and wide availability
- Convenient to use, easy status readiness with mechanical indicator & LED; one-step lockable test button
- Compliant with industrial standard and eco-design
- Flexible options of sockets and accessories
- One-step lockable test button and mechanical indicator for contact status
- Electrical durability of 100,000 cycles
- Wide range of operating temperature from -40°F to 131°F
Specifications
Physical Attributes
- Cad Overall Depth
- 78.45 mm
Cad Overall Height79 mm
Conformance Attributes
- Product Certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
StandardsIEC 61810-1, CSA C22.2 No 14, UL 508
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Voltage
- 250 V IEC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current6 A
Maximum Switching Capacity1500 VA/168 W
Rated Operational Voltage Limits184...253 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Material
- AgNi
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
- Load Current
- 6 A 250 V AC, 6 A 28 V DC
- Shock Resistance
- 10 gnin operation, 30 gnnot operating
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Uc Control Circuit Voltage2
- 230 V AC 50/60 Hz, 230 V
- Carbon Footprint Of The Distribution Phase A4
- 0.0047738385, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0002262618
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 18 kg CO2 eq., 17.7011382857
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Ui Rated Insulation Voltage5
- 250 V IEC, 300 V CSA, 300 V UL
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2106019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Compatibility Code
- RXM
- Electrical Durability
- 100000 cycles resistive
- Operating Position
- any position
- Package Weight Lbs
- 35.000 g
- Range Of Product
- Harmony Electromechanical Relays
- Returnability
- No
- Shape Of Pin
- flat (faston type)
- Total Lifecycle Carbon Footprint
- 18 kg CO2 eq.
- Uimp Rated Impulse Withstand Voltage2
- 2.5 kV 1.2/50 µs
- Country Of Origin 6
- US
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Energy Model Manufacturing A1 A3 2
- Energy model used: China
- Energy Model Use B6 2
- Electricity mix; AC; 120V; US
- Average Coil Consumption In Va
- 1.2-1.2 60 Hz
- Average Resistance
- 15000 Ohm 20 °C +/- 15 %
- Reset Time
- 20 ms
- Test Levels
- level A group mounting
- Global Commercial Status
- Commercialised
- Uc Control Circuit Voltage5
- 230 V AC 50/60 Hz
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Typelockable test button, lockable test but
Drop Out Voltage Threshold>= 0.15 Uc, >= 0.15 Uc, >= 0.15 Uc, >= 0.15 Uc, >= 0.15 Uc, >= 0.15 Uc
Product Or Component Typeplug-in relay
Status Ledwithout, with
Ie Rated Operational Current23 A 28 V DC) NC IEC, 3 A 250 V AC) NC IEC, 6 A 28 V DC) NO IEC, 6 A 277 V AC) UL, 8 A 30 V DC) UL
Ui Rated Insulation Voltage2250 V IEC, 300 V CSA, 300 V UL
Carbon Footprint Of The End Of Life Phase C1 To C40.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.2927376966
Ats Control Circuit TypeAC, AC
Ie Rated Operational Current53 A 28 V DC) NC IEC, 3 A 250 V AC) NC IEC, 6 A 28 V DC) NO IEC, 6 A 250 V AC) NO IEC, 6 A 277 V AC) UL, 8 A 30 V DC) UL
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Contacts Type And Composition4 C/O
Mechanical Durability10000000 cycles
Operating Time20 ms
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Relay Typeminiature relay
Series NameRXM series
Sustainable PackagingYes
Ithe Conventional Enclosed Thermal Current26 A
Medium Descminiature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 230V AC
Stocking FlagY
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity mix; AC; 120V; US
Energy Model End Of Life C1 C4 2Electricity mix; AC; 120V; US
Average Consumption1.2 VA 60 Hz
Protection CategoryRT I
Safety Reliability DataB10d = 100000
Utilisation Coefficient20 %
Ithe Conventional Enclosed Thermal Current56 A
Uimp Rated Impulse Withstand Voltage52.5 kV 1.2/50 µs
Environment Attributes Main
- Take Back
- Nej, No
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C, -40-85 °C
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 18.0037160514
- Environmental Disclosure
- ENVPEP2106019EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2106019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-55 °C, -40-55 °C, -40-55 °C, -40-55 °C, -40-55 °C, -40-55 °C
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2106019EN
IP Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
Output Attributes
- Continuous Output Current
- 5 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United Kingdom, Indonesia
Overview Attributes
- Device Presentation
- complete product
