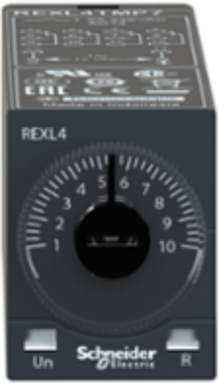

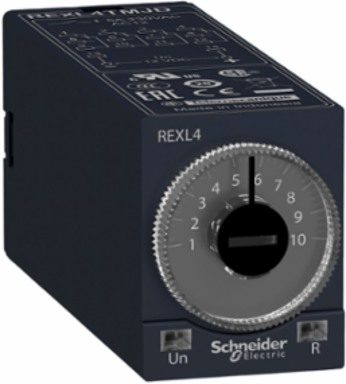

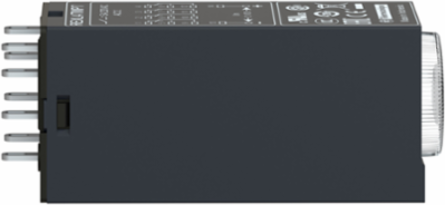

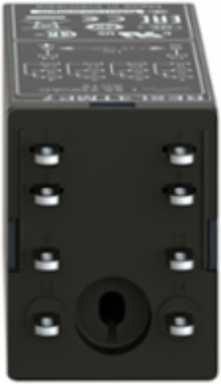

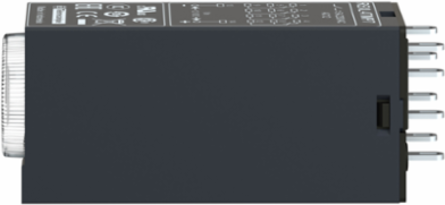

Schneider Electric REXL4TMP7 Harmony Timer Relay 5A 4CO 0.1s-100h 230V AC Plug-in
- MPN: REXL4TMP7
- PPN: SCH-REXL4TMP7
CAD
$78.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Complementary Attributes
- Line Rated Current
- 5 A AC, 5 A
- Minimum Switching Current
- 100 mA
Maximum Switching Capacity4 x 5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Immunity To Voltage Dips
- >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, 30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11
- Repeat Accuracy
- +/- 0.5 %, +/- 0.5 %
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
- Time Delay Type
- power on-delay - A- Power on-delay relay, A, power on-delay
- Contacts Composition
- 4 C/O
- [Ui] Rated Insulation Voltage
- 250 V IEC 255 Group C, 250 V VDE 0010
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0066317
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.59282
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Fixing Mode
- plug-in (socket)
- Functionality
- on-delay timing
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Number Of Functions
- 1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Timer Relays
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 3
- Setting Accuracy Of Time Delay
- 10 % at full scale 25 °C IEC 61812-1
- Software Version
- EIME v5.6
- Temperature Drift
- 0.05 %/°C
- Total Lifecycle Carbon Footprint
- 32 kg CO2 eq.
- Voltage Range
- 0.85...1.15 Us
- Pep Code
- ENVPEP1310019EN
- Pep Verification Date
- 2017-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Recyclability Potential, In %
- 28
- [Uc] Control Circuit Voltage
- 230 V
- Connections - Terminals
- screw connectors
- Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
- 31.509
- Package Weight(Lbs)
- 50.000 g
- Warranty (In Months)
- 18
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 0.1289
- Air Pollution (M3) Manufacturing [A1-a3]
- 113.1
- Air Pollution (M3) Operational Energy Use [B6]
- 1330
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 6.9653
- Global Warming (Kg.Equivalent.Co2) Total Life Cycle
- 31.509
- Hazardous Waste Disposed Of (Kg) Total Life Cycle
- 5.3031
- Net Use Of Fresh Water (M3) Total Life Cycle
- 112.06
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 115.5
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 547.95
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 538.7
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 9.6396
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 79.043
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 547.39
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 538.7
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 78.48
- Water Pollution (M3) Manufacturing [A1-a3]
- 67.734
- Water Pollution (M3) Operational Energy Use [B6]
- 1275.1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Local Signalling1 LED (red) for output in operation, 1 LED (yellow) for power ON
Reset Time250 ms after time delay, on de-energisation, 50 ms during time delay, on de-energisation
Time Delay Range6...60 s, 1...10 s, 6...60 min, 1...10 min, 0.1...1 s, 10...100 h, 1...10 h
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Certificate AgencycUL, UL
Carbon Footprint Of The Distribution Phase [A4]0.0067362, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00066416, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]31 kg CO2 eq., 30.902
Local Publishable Date2026-03-26
Stocking FlagY
Use Carbon Footprint30.902
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameREXL
Contacts Type And Composition4 C/O
Electrical Durability100000 cycles 250 V AC resistive
Function AvailableA- Power on-delay relay-4 C/O
Immunity To Microbreaks5 ms
Mechanical Durability10000000 cycles
Power Consumption In Va3 VA
Product Or Component Typeminiature timing relay
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3 level 3
ReturnabilityYes
Shape Of Pinflat
Sustainable PackagingYes
Temporary Permissible Current10 A < 10 s
Vibration Resistance0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 3230 V AC 50/60 Hz
Database Version2017-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh63.072
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal21 mm
[Us] Rated Supply Voltage230 V AC 50/60 Hz
Disturbance Radiated/Conductedclass B EN 55022 (EN 55011 group 1)
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle0.1318
Air Pollution (M3) Total Life Cycle1444
Air Pollution (M3) Installation [A5]0.0734
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle357.89
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]350.76
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]30.902
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]5.1949
Net Use Of Fresh Water (M3) Operational Energy Use [B6]112.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]115.22
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]9.0769
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle626.99
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]617.18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]78.48
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]8.5217
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle78.91
Water Pollution (M3) Total Life Cycle1344.6
Water Pollution (M3) Distribution [A4]1.1078
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 31.509
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1310019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1310019EN
Ip Degree Of ProtectionIP50 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation IEC 60068-2-6
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Output Overvoltage Protection2 J
Surge Protection And Filtering Attributes
- Surge Withstand
- 2 kV IEC 61000-4-5 level 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
