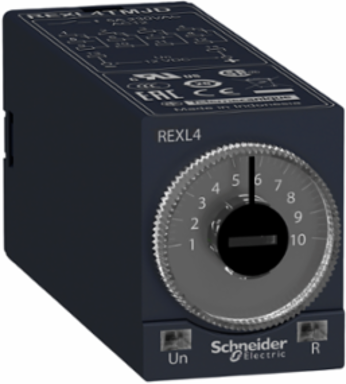

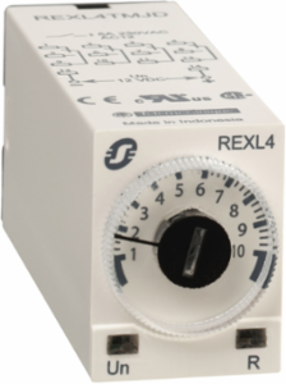

Schneider Electric REXL4TMB7 Harmony Timer Relay, 5A, 4 C/O, 0.1s-100h, 24V AC
- MPN: REXL4TMB7
- PPN: SCH-REXL4TMB7
CAD
$78.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Line Rated Current
- AC, 5 A
- Minimum Switching Current
- 100 mA
Maximum Switching Capacity4 x 5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Immunity To Voltage Dips
- >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-1130 % / 10 ms IEC 61000-4-1160 % / 100 ms IEC 61000-4-11
- Time Delay Range
- 6...60 s, 1...10 s, 1...10 h, 1...10 min, 6...60 min, 10...100 h, 0.1...1 s
- Voltage Drift
- +/- 0.2 %/V, +/- 0.2 %/V
- Certificate Agency
- UL, cUL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0067091055, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0006614886, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 58 kg CO2 eq., 58.3704444444
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Component Name
- REXL
- Contacts Type And Composition
- 4 C/O
- Electrical Durability
- 100000 cycles 250 V AC resistive
- Function Available
- A- Power on-delay relay-4 C/O
- Immunity To Microbreaks
- 5 ms
- Local Signalling
- 1 LED (red) for output in operation1 LED (yellow) for power ON
- Number Of Functions
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Timer Relays
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3 level 3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 3
- Setting Accuracy Of Time Delay
- 10 % at full scale 25 °C IEC 61812-1
- Software Version
- EIME v5.6
- Temperature Drift
- 0.05 %/°C
- Total Lifecycle Carbon Footprint
- 59 kg CO2 eq.
- Voltage Range
- 0.85...1.15 Us
- Pep Code
- ENVPEP1310019EN
- Pep Verification Date
- 2017-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 28
- [Uc] Control Circuit Voltage
- 24 V
- Connections - Terminals
- screw connectors
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 211.65
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 148.24
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Repeat Accuracy+/- 0.5 %, +/- 0.5 %
Time Delay Type- - relay, A, power on-delay
Contacts Composition4 C/O
[Ui] Rated Insulation Voltage250 V IEC 255 Group C, 250 V VDE 0010
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0066050259
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5904355487
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Creepage Distance4 kV/3 IEC 60664-1
Fixing Modeplug-in (socket)
Functionalityon-delay timing
Immunity To Radioelectric Fields10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Mechanical Durability10000000 cycles
Power Consumption In Va1.7 VA
Product Or Component Typeminiature timing relay
Reset Time250 ms after time delay, on de-energisation50 ms during time delay, on de-energisation
Resistance To Electrostatic Discharge6 kV in contact IEC 61000-4-2 level 38 kV in air IEC 61000-4-2 level 3
ReturnabilityYes
Shape Of Pinflat
Sustainable PackagingYes
Temporary Permissible Current10 A < 10 s
Vibration Resistance0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 324 V AC 50/60 Hz
Database Version2017-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh119.136
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27

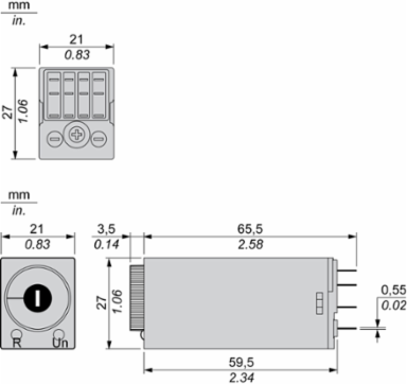

Width Nominal21 mm
[Us] Rated Supply Voltage24 V AC 50/60 Hz
Disturbance Radiated/Conductedclass B EN 55022 (EN 55011 group 1)
Package Weight(Lbs)49.000 g
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]148.24
Customs Code8536410060
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 58.9748556132
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1310019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1310019EN
Ip Degree Of ProtectionIP50 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation IEC 60068-2-6
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Output Overvoltage Protection2 J
Surge Protection And Filtering Attributes
- Surge Withstand
- 2 kV IEC 61000-4-5 level 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
