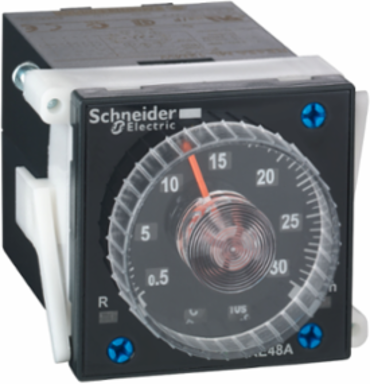

Schneider Electric RE48AMH13MW Harmony Multifunction Timer Relay 5A, 24...240V AC/DC, 0.02s...300h
- MPN: RE48AMH13MW
- PPN: SCH-RE48AMH13MW
CAD
$110.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 22.5mm wide. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Voltage Range
- 0.85...1.1 Us AC || 0.9...1.1 Us DC
- Discrete Output Type
- relay
- Product Or Component Type
- multifunction relay
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- [In] Rated Current
- 5 A
- Time Delay Type
- delay on energization || pulse-on energization
Contacts Type And Composition1 C/O + 1 C/O timed or instantaneous contact, AgNi (cadmium free)
Range Of ProductHarmony Timer Relays
Component NameRE48
Time Delay Range2...120 h || 5...300 min || 0.2...12 min || 2...120 s || 0.2...12 h || 0.02...1.2 s || 0.5...30 h || 0.2...12 s || 5...300 h || 0.5...30 s || 0.05...3 s || 5...300 s || 2...120 min || 0.5...30 min
Electrical Connectionplug-in sub-base 8
Complementary
- Output Voltage
- 240 V 5 A AC-12 || 30 V 2 A DC-13 || 240 V 1.5 A AC-15
- Setting Accuracy Of Time Delay
- +/- 5 % of full scale 25 °C IEC 61812-1
- Mounting Support
- base mounted: socket || panel mounted: system supplied with the product
- Pick Up Duration
- 55 ms
- Marking
- CE
- Net Weight
- 0.14 kg
- Reset Time
- 25 ms on de-energisation
- Maximum Switching Voltage
- 250 V AC/DC
- Voltage Drift
- +/- 0.2 %/V of the maximum setting value 48...240 V || +/- 1 %/V of the maximum setting value 24...48 V
- Minimum Switching Current
- 100 mA
- Mechanical Durability
- 30000000 cycles
- Housing Material
- self-extinguishing
- Repeat Accuracy
- +/- 0.2 % of the maximum setting value IEC 61812-1
Power Consumption In W0.5 W 24 V || 1.7 W 240 V
Control Typeselector switch front panel
Temperature Drift+/- 0.02 %/°C of the maximum setting value IEC 61812-1
Maximum Switching Current5 A
Product Front Plate Size48 x 48 mm
Minimum Pulse Duration20 ms
Power Consumption In Va1.1 VA 24 V || 4.8 VA 240 V
Surge Withstand1 kV differential mode IEC 61000-4-5 level 3 || 2 kV common mode IEC 61000-4-5 level 3
Electrical Durability100000 cycles
Local Signallingoutput relay state 1 LED yellow) || flashing: relay energised timing in progress LED indicator green) || on steady: relay energised, no timing in progress LED indicator green)
On-Load Factor100 %
Breaking Capacity1250 VA
Environment
- Product Certifications
- cULus || UL || CSA || C-Tick
- Resistance To Electromagnetic Fields
- 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3
- Disturbance Radiated/Conducted
- class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
- Protection Against Electric Shocks
- 4 kV class III IEC 60664-1 || 4 kV class III IEC 61812-1
- Vibration Resistance
- 0.35 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Dielectric Strength
- 1 kV 1 mA/1 minute IEC 61812-1
Ambient Air Temperature For Operation-20-50 °C
StandardsEN 50082-1/2 || EN 50081-1/2 || 93/68/EEC || 73/23/EEC || 89/336/EEC || IEC 60669-2-3 || IEC 61812-1
Immunity To Microbreaks10 ms
Immunity To Voltage Dips30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11 || 95 % / 5 s IEC 61000-4-11
Ip Degree Of ProtectionIP40 IEC 60529 housing) || IP50 IEC 60529 front face)
Relative Humidity93-93 % without condensation IEC 60068-2-3
Humidity Drift+/- 0.05 %/%RH of the maximum setting value IEC 61812-1
Resistance To Fast Transients2 kV IEC 61000-4-4 level 4 capacitive connecting clip) || 4 kV IEC 61000-4-4 level 4 direct)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1512002EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1512002EN
