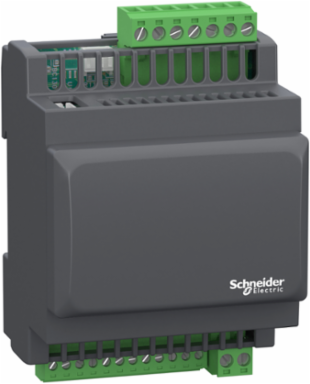

Schneider Electric TM171EO14R Expansion Module for Modicon M171/M172, 14 I/O, 100-240V AC
- MPN: TM171EO14R
- PPN: SCH-TM171EO14R
CAD
$202.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This expansion module from Schneider Electric is designed to enhance the capabilities of Modicon M171 and M172 programmable logic controllers. Featuring 14 input/output channels, it allows for flexible system configurations to meet a variety of automation and control needs. With a voltage range of 100-240V AC and a convenient DIN rail mounting option, this module ensures easy integration into existing setups. Its robust design provides reliable performance, making it a valuable addition for anyone looking to scale their automation solutions efficiently.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy, Sweden
Depth61.6 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable
- Input/Output Number
- 5 analog output4 digital output, 5 analog input
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.5216254315182522
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.41812723959728
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1710004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Display Type
- Without Display
- Number Of Port
- 1 LAN expansion bus
- Power Consumption In W
- 7 W
- Product Or Component Type
- additional I/O module
- Range Of Product
- Modicon M171/M172
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 177 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1710004EN
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- Height Nominal
- 87 mm
- [Us] Rated Supply Voltage
- 100...240 V +/- 10 % AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Certificate AgencyEAC, cURus, CSA, CE
Carbon Footprint Of The Distribution Phase [A4]0.1115051918043258, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.004696289541949586, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]166 kg CO2 eq., 165.7967990445545
Local Publishable Date2026-01-12
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Contacts Usagevolt-free contacts
Mounting SupportDIN rail
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -10-55 °C
Sensor Power Supply12-12 V DC 85 mA
Sustainable PackagingYes
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh350.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal70.2 mm
Number Of Inputs/Outputs14
Package Weight(Lbs)284.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1
- Directives
- 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1710004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint176.8527531970163
Environmental DisclosureENVPEP1710004EN
Ip Degree Of ProtectionIP20
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1710004EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- additional I/O module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001421
ETIM 9EC001421
Output Attributes
- Analogue Output Number
- 2 voltage 0...10 V2 PWM/PPM 20 kHz, 12 V, 35 mA, 1 current 0...20 mA/4...20 mA
- Discrete Output Current
- 2 A relay
Discrete Output Number1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °CPt 1000 temperature probe - 50...400 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V
- Discrete Input Logic
- sink or source (positive/negative)
Analogue Input Number3 analog input NTC/Pt 10002 configurable
Discrete Input Number2
