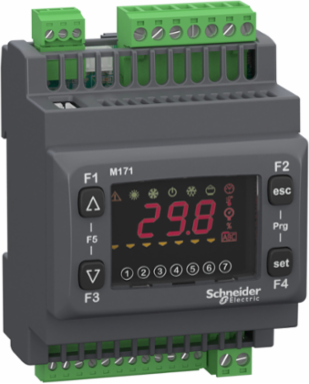

Schneider Electric TM171ODM14R Modicon M171/M172/M173 Controller, 14 I/O, 100-240V AC, IP20
- MPN: TM171ODM14R
- PPN: SCH-TM171ODM14R
CAD
$297.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 70.2mm (width) x 61.7mm (depth) x 87mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Italy, Sweden |
|---|
| Depth | 61.7 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 6 LEDs (red)5 LEDs (green), 7 LEDs (amber) for programmable |
| Certificate Agency | CE, EAC, CSA, cURus |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1115051918043258, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.004696289541949586, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 166 kg CO2 eq., 165.7967990445545 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Contacts Usage | volt-free contacts |
| Mounting Support | DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | built-in clock at -20-55 °C |
| Sensor Power Supply | 12-12 V DC 85 mA5-5 V DC 20 mA |
| Sustainable Packaging | Yes |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 350.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 70.2 mm |
| Number Of Inputs/Outputs | 14 |
| Package Weight(Lbs) | 287.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Number Of Port | 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link) |
| Input/Output Number | 5 analog output4 digital output, 5 analog input |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.5216254315182522 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.41812723959728 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Display Type | four 7-segment display units |
| Overvoltage Category | II |
| Product Or Component Type | controller |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 177 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1710004EN |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Height Nominal | 87 mm |
| [Us] Rated Supply Voltage | 100...240 V +/- 10 % AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1 |
|---|---|
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 176.8527531970163 |
| Environmental Disclosure | ENVPEP1710004EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710004EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | controller |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 2 voltage 0...10 V2 PWM/PPM 20 kHz, 12 V, 35 mA, 1 voltage/current 0...20 mA/4...20 mA |
|---|---|
| Discrete Output Current | 2 A relay |
| Discrete Output Number | 1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °CPt 1000 temperature probe - 50...400 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Analogue Input Number | 2 configurable3 analog input NTC |
|---|---|
| Discrete Input Number | 2 |
