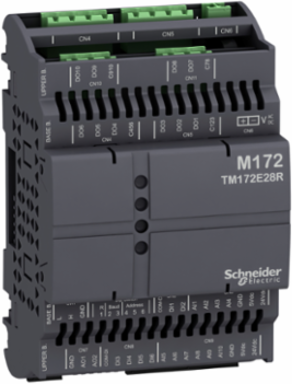

Schneider Electric TM172E28R Modicon M172 Expansion Module, 28 I/O, 72mm x 59mm x 110mm, IP20
- MPN: TM172E28R
- PPN: SCH-TM172E28R
CAD
$282.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

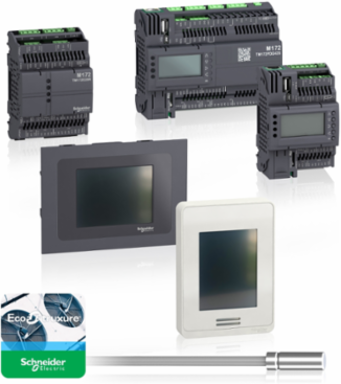

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Features
- Equipped with 28 built-in inputs and outputs including 10 analog inputs, 6 digital inputs, 2 analog outputs, and 10 digital outputs this module drastically increases the capacity of a primary Modicon TM172 performance controller. This comprehensive I/O mix allows mechanical contractors and system integrators to monitor additional temperature sensors, pressure transducers, and flow switches while simultaneously driving extra fans, dampers, and multi-stage compressors from a single expansion footprint.

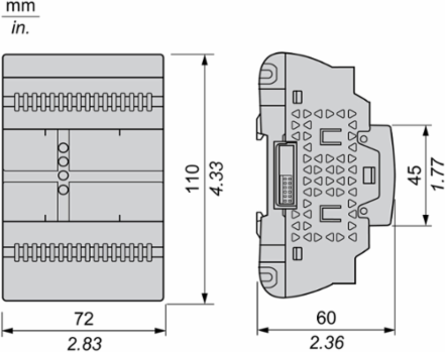

- Measuring just 72mm x 59mm x 110mm, this space-saving chassis snaps directly onto standard 35mm DIN rails with minimal footprint overhead. The dense, vertical architecture enables panel builders to optimize layout space inside commercial mechanical rooms, leaving ample room for wire duct routing, power supplies, and terminal blocks.
- Built with highly configurable analog inputs, the module natively accepts a wide variety of standard industrial sensor types without requiring external signal conditioners. This software-defined flexibility allows technicians to mix and match NTC/PTC thermistors, PT1000 sensors, 0-10V voltage lines, and 4-20mA current loops on the fly, streamlining field wiring and reducing inventory complexity.
- Featuring an IP20-rated housing, this expansion unit is designed to prevent finger contact with live electrical components while protecting internal circuitry from solid objects larger than 12mm. This ensures a safe environment for facility technicians performing routine diagnostic work or setting adjustments inside the main electrical panel.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Italy, Sweden, United States
Depth59 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Measurement Accuracy
- NTC NK103 - 40...+110 °C +/- 1 °CNTC NK103 110...137 °C +/- 1.9 °CNTC 103AT-2 - 50…110 °C +/- 1 °C, PTC - 55...+135 °C +/- 1.1 °CPTC - 150…135 °C +/- 3.1 °C, Pt 1000 - 200...-100 °C +/- 5 °CPt 1000 - 100...-50 °C +/- 3 °CPt 1000 - 50...+200 °C +/- 1.5 °CPt 1000 200...600 °C +/- 15 °CPt 1000 600...850 °C +/- 30 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...700 hOhm +/- 10 hOhmhOhm 700 hOhm...1200 hOhm +/- 25 hOhmhOhm 1200 hOhm...1500 hOhm +/- 60 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
- Certificate Agency
- cURus, EAC, CE, RCM, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1562931105123967, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02976637944179302, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 622 kg CO2 eq., 621.7379964170797
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Number Of Port
- 1 CAN port - screw terminal block
- Power Consumption In W
- 24 VA 24 V AC15 W 24 V DC
- Product Or Component Type
- additional I/O module
- Range Of Product
- Modicon M171/M172
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 660 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1709014EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
- Height Nominal
- 110 mm
- [Us] Rated Supply Voltage
- 24 V +/- 10 % AC20...38 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Mounting SupportDIN rail, panel mounting with accessory
Input/Output Number2 analog output6 digital input10 analog input, 10 digital output
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.037092482472762
Carbon Footprint Of The Manufacturing Phase [A1 To A3]37 kg CO2 eq., 37.02101742543932
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1709014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Display TypeWithout Display
Overvoltage CategoryII
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific ApplicationHVAC control
Realtime Clockwithout clock
Sensor Power Supply5-5 V DC 50 mA24-24 V DC 125 mA
Sustainable PackagingNo
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1314
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal72 mm
Number Of Inputs/Outputs28
Package Weight(Lbs)258.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1, -20-65 °C UL 60730-1-20-65 °C UL 60730-1, -20-65 °C UL 60730-1
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1709014EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1709014EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint659.9821658149459
Environmental DisclosureENVPEP1709014EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2025-09-01
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- additional I/O module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001421
ETIM 9EC001421
Output Attributes
- Discrete Output Number
- 3 relay outputs SPST with same common, 2 relay outputs SPST with same common
- Discrete Output Current
- 3 A relay SPST
Analogue Output Number2 programmable
Input Attributes
- Analogue Input Type
- NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C)NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C)current 0...20 mA 1 digit < 150 Ohm, current 4...20 mA 1 digit < 150 Ohm, voltage 0...10 V 1 digit > 10 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhmdirect input 1 digit Dry contact)PTC - 55...150 °C 0.1 °C 2 kOhmPt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm
- Discrete Input Number
- 2, 4
- Discrete Input Current
- 2.5 mA AC/DC
- Input Impedance
- 20 kOhm
Discrete Input Logic2 positive logic (sink) up to 2 kHz, 4 positive logic (sink)
Analogue Input Number10 configurable by pair
Discrete Input Voltage24 V AC/DC
