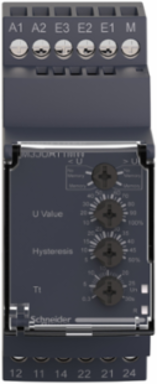

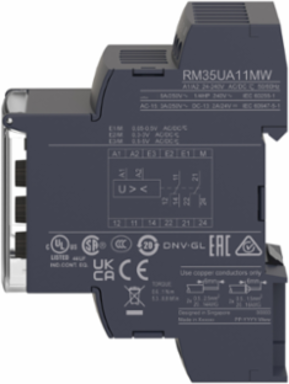

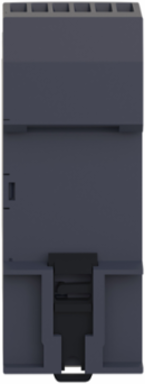

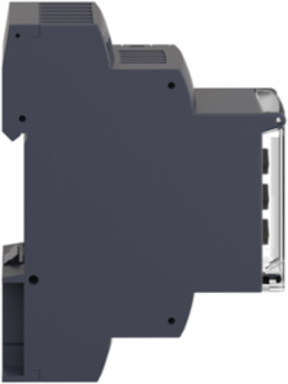

Schneider Electric RM35UA11MW Harmony Multifunction Voltage Control Relay 5A 0.05-5V AC/DC
- MPN: RM35UA11MW
- PPN: SCH-RM35UA11MW
CAD
$199.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Features
- Engineered with a wide, universal input supply voltage of 24 to 240V AC/DC, the Schneider RM35UA11MW seamlessly drops into almost any automated system architecture without requiring secondary power transformers. This universal capability eliminates inventory clutter and guarantees that a single component can handle varying field power conditions across multi-voltage control panels.
- Featuring a highly sensitive measurement range spanning from 0.05V to 5V AC/DC, this multifunction control relay is optimized for precision monitoring of low-voltage anomalies, battery banks, or sensor loops. It safeguards your critical equipment against minute overvoltage and undervoltage conditions before expensive system degradation or component failures occur.
- Equipped with an adjustable built-in time delay trimmer ranging from 0.3 to 30 seconds, the relay lets you fine-tune the fault response window to filter out brief, harmless voltage surges. This adjustable buffering ensures maximum industrial uptime by ignoring momentary drops or spikes while maintaining tight, unwavering protection against sustained electrical faults.
- Built with a 2 C/O (Changeover, DPDT) contact configuration rated at 5A, this control relay allows you to simultaneously switch independent auxiliary circuits, trigger localized alarms, or feed fault signals directly into a master PLC. The robust 1250 VA switching capacity provides a reliable hard-wired logic solution perfect for retrofitting older panel installations or building out robust safety interlocks.
- Boasting a compact 35mm modular width, the Harmony series casing mounts effortlessly onto any standard 35mm symmetrical DIN rail, occupying the exact same footprint as a standard three-pole circuit breaker. The space-saving design minimizes overall enclosure sizing, while the transparent, sealable front cover prevents unauthorized adjustments to your threshold settings after commissioning.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Complementary Attributes
- Control Circuit Voltage Limits
- - 15 % + 10 % Un, - 15 % + 10 % Un
- Line Rated Current
- 5 A
- Maximum Power Consumption In W
- 0.6 W DC
- Maximum Switching Voltage
- 250 V AC/DC
Control Circuit Frequency40...70 Hz +/- 10 %
Maximum Measuring Cycle30 ms measurement cycle as true rms value
Maximum Switching Current5 A AC/DC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
- Measurement Accuracy
- +/- 10 % of the full scale value, +/- 10 % of the full scale value
- Operating Rate
- <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
- Resistance Across Terminals
- 30 mOhm E2-M terminals, 5 mOhm E1-M terminals, 50 mOhm E3-M terminals
- Sensitivity Scale
- 0.05...0.5 V E1-M terminals, 0.3...3 V E2-M terminals, 0.5...5 V E3-M terminals
- Vibration Resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1, 600 V IEC 60664-1
- Non-dissipating Shock Wave
- 4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.26282577079697494, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.42719604421175
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles
- Hysteresis
- 5-50 % threshold setting
- Measurement Range
- 0.05...5 V AC/DC
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Overvoltage Category
- III conforming to IEC 60664-1
- Power Consumption In Va
- 0-3.5 VA AC
- Product Or Component Type
- voltage control relay
- Range Of Product
- Harmony Control Relays
- Relay Name
- RM35UA
- Reset Time
- 1500 ms time delay
- Shock Resistance
- 5 gn IEC 60068-2-27
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Switching Capacity In Va
- 1250 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 50 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RM35 relay used to measure and monitor the abnormal operating& 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 35 mm
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz, non self-powered
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Local SignallingLED (green) for power ON, LED (yellow) for relay ON
Measurement Error+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
Safety Reliability DataB10d = 290000, MTTFd = 308.2 years
Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
Certificate AgencyGOST, CSA, GL, UL, C-tick
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
Carbon Footprint Of The Distribution Phase [A4]0.01830730075625363, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.04542568353694008
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]40 kg CO2 eq., 40.209599999999995
Local Publishable Date2026-04-09
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1601004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRM3
Control Typewithout test button
Housing Materialpolycarbonate
Immunity To Microbreaks10 ms
Mechanical Durability30000000 cycles
Operating Positionany position without derating
Polaritynon reversible polarity on DC supply
Product AvailabilityStock - Normally stocked in distribution facility
Quality LabelsCE
Relay Monitored Parametersovervoltage or undervoltage detection
Relay Typemultifunction voltage control relay
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Threshold Setting10...100 %
Time Delay Typeadjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Pep CodeENVPEP1601004EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage24...240 V
Run-up Delay At Power-up600 ms
Package Weight(Lbs)140.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-50 °C-20-50 °C
- Environmental Disclosure
- ENVPEP1601004EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1601004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint49.96335479930191
Circularity ProfileENVEOLI1601004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- voltage control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001438
ETIM 9EC001438
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts2 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
