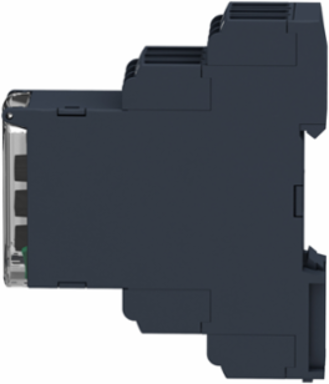

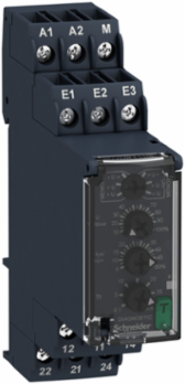

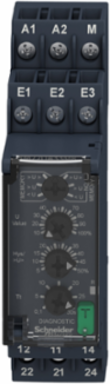

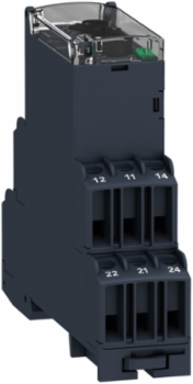

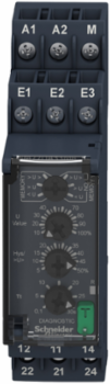

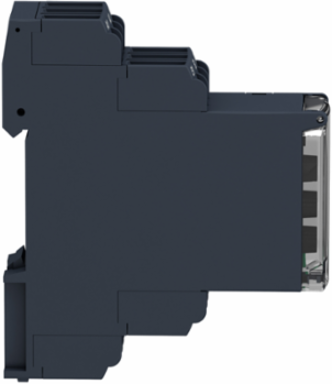

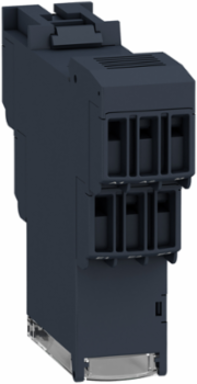

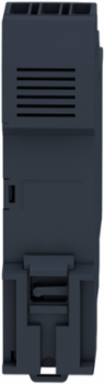

Schneider Electric RM22UA33MR Harmony Voltage Control Relay 8A, 2C/O, 15-500V AC/DC
- MPN: RM22UA33MR
- PPN: SCH-RM22UA33MR
CAD
$212.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RM22-UA relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Sweden, United States
Complementary Attributes
- Line Rated Current
- 8 A
- Maximum Power Consumption In W
- 1.5 W DC
- Maximum Switching Voltage
- 250 V AC
Maximum Measuring Cycle100 ms measurement cycle as true rms value
Maximum Switching Current8 A AC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B conforming to CISPR 22
- Insulation Resistance
- > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
- Relay Monitored Parameters
- undervoltage and overvoltage in window mode, overvoltage or undervoltage detection
- Resistance Across Terminals
- 150 kOhm E2-M terminals, 300 kOhm E1-M terminals, 500 kOhm E3-M terminals
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.29640424549447, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.54991597524021
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 121.85
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Control Type
- with test button
- Electrical Durability
- 100000 cycles
- Housing Material
- polycarbonate
- Insulation
- between supply and measurement
- Mechanical Durability
- 10000000 cycles
- Overvoltage Category
- III conforming to IEC 60664-1
- Power Consumption In Va
- 3.5-3.5 VA AC
- Product Or Component Type
- voltage control relay
- Relay Name
- RM22UA
- Reset Time
- 1500 ms at maximum voltage
- Returnability
- Yes
- Supply Circuit Type
- DC
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 44 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 80% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 84.096
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

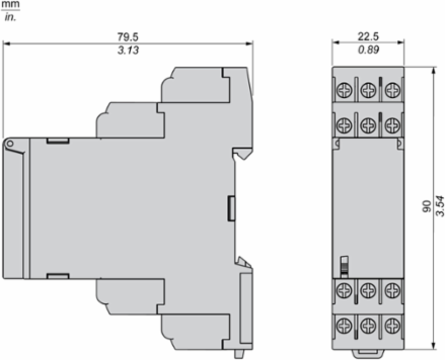

- Width Nominal
- 22.5 mm
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz, non self-powered
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Hysteresis3-3 % fixed full scale for window mode, 5-50 % adjustable threshold setting
Measurement Error< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
Safety Reliability DataMTTFd = 308.2 years, B10d = 290000
Utilisation CategoryAC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Certificate AgencyRCM, UL, EAC, CSA, CE, GL, CCC
Carbon Footprint Of The Distribution Phase [A4]0.0861590099613647, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0007976505997106257
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]41 kg CO2 eq., 40.75904111642342
Local Publishable Date2026-03-26
Future Imap109.18
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506066EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRM22
Contacts Type And Composition2 C/O
Dielectric Test Voltage2.5 kV AC 50 Hz, 1 min IEC 60255-27
Functionalityundervoltage and overvoltage in window mode
Immunity To Microbreaks10 ms
Measurement Range15...500 V AC/DC
Mounting Support35 mm DIN rail conforming to IEC 60715
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Control Relays
Relay Typevoltage control relay
Response Time<= 500 ms<= 500 ms
Software Versionv6.2.5-6
Supply Voltage Limits20.4-264 V AC/DC
Switching Capacity In Va2000 VA
Time Delay Typeadjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Pep CodeENVPEP2506066EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %18
[Uc] Control Circuit Voltage24...240 V
Run-up Delay At Power-up600 ms
Package Weight(Lbs)122.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz, -20-60 °C 50 Hz-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz
- Ip Degree Of Protection
- IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2506066EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint43.69231799771917
Environmental DisclosureENVPEP2506066EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2506066EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Control Relays
Product Or Component Typevoltage control relay
ETIM
- ETIM 8
- EC001438
ETIM 9EC001438
Output Attributes
- Nominal Output Current
- 8 A
Output Contacts2 C/O
