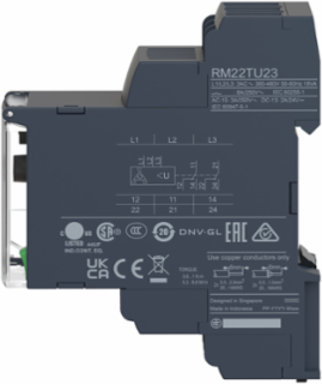

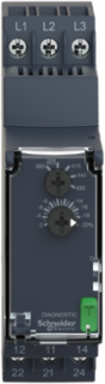

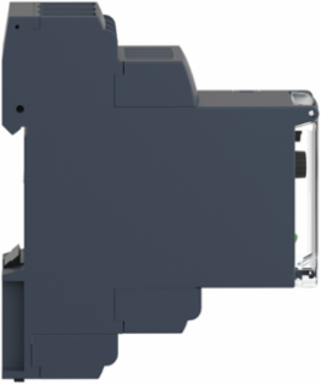

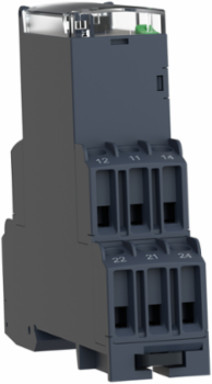

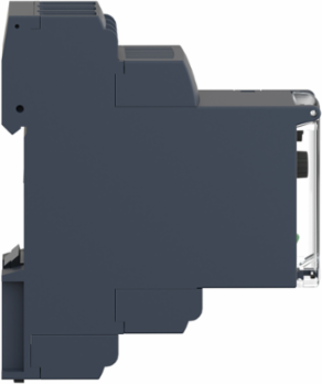

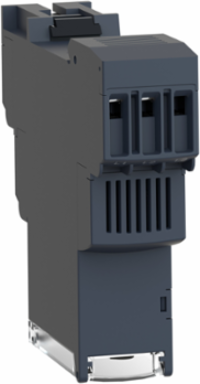

Schneider Electric RM22TU23 Harmony 3-Phase Control Relay 8A 2CO Undervoltage Detection 380-480V AC
- MPN: RM22TU23
- PPN: SCH-RM22TU23
CAD
$165.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM22TR control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Features
- The Schneider Electric RM22TU23 Harmony control relay continuously tracks phase loss, phase sequence, and undervoltage conditions across a 380V to 480V AC measurement range. By instantly identifying these critical power line faults, it triggers an automatic shutdown to safeguard high-value downstream machinery like industrial motors, pumps, and packaging equipment against catastrophic phase failure burnout.
- Featuring an ultra-slim 22.5mm width form-factor, this DIN rail monitoring relay occupies the exact same footprint as a standard 1-pole circuit breaker. This streamlined profile optimizes your rail space, simplifying hard-wired logic installations and panel retrofits without forcing you to scale up to an expensive, oversized enclosure.
- Engineered with 2 C/O (changeover) DPDT output contacts rated at 8A and 250V AC, this control relay offers the multitasking capability required for automated industrial environments. You can dedicatedly hard-wire one contact to immediately cut power to the motor starter coil while utilizing the second contact to report the fault condition directly to your PLC or localized alarm system.
- Built to conform to stringent international standards including IEC 60255-1 and UL 508, this Harmony series relay carries UL, CSA, CE, and RCM certifications. This comprehensive compliance guarantees long-term durability with a mechanical lifespan of up to 10 million cycles, making it fully approved for demanding commercial lifts, hoists, and municipal water applications.
Documentation & Downloads
Specifications
Key Specifications

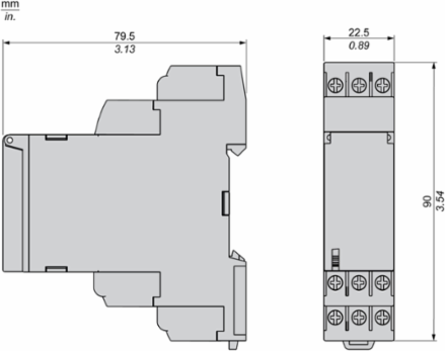

- Width
- 22.5 mm
- Depth
- 73 mm
Country of OriginBrazil, France, Indonesia, Sweden, United States, ZZ
Complementary Attributes
- Control Circuit Voltage Limits
- - 20 % + 20 % Un- 20 % + 20 % Un
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Maximum Switching Voltage
- 250 V AC
Line Rated Current8 A
Maximum Switching Current8 A AC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22
- Measurement Error
- < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation
- Relay Monitored Parameters
- phase failure detection, undervoltage detection, phase sequence, phase failure detection
- Safety Reliability Data
- MTTFd = 388.1 years, B10d = 350000
- Time Delay Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Certificate Agency
- CSA, RCM, UL, GL, CE, CCC, EAC
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0598504909, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.1171181818
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Control Type
- with test button
- Electrical Durability
- 100000 cycles
- Hysteresis
- 2-2 % fixed selectable
- Mechanical Durability
- 10000000 cycles
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Control Relays
- Relay Type
- control relay
- Response Time
- <= 300 ms<= 300 ms
- Setting Accuracy Of The Switching Threshold
- +/- 10 % of the full scale+/- 10 % of the full scale
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Status Led
- LED (Yellow) relay ONLED (Green) power ON
- Supply Voltage Limits
- 304-576 V AC
- Switching Capacity In Va
- 2000 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 71 kg CO2 eq.
- Contacts Composition
- 2 C/O
- Pep Code
- ENVPEP2506066EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 17
- Width Nominal
- 22.5 mm
- Run-up Delay At Power-up
- 650 ms
- Package Weight(Lbs)
- 103.0 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 256.032
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1371.52
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1197.12
- Water Pollution (M3) Operational Energy Use [B6]
- 2833.6
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Overvoltage CategoryIII conforming to IEC 60664-1, III conforming to UL 508
Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit
Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Utilisation CategoryAC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Voltage Detection Threshold< 100 V AC, < 100 V AC< 100 V AC, < 100 V AC
[Us] Rated Supply Voltage, self-poweredAC/DC, , self-powered
Carbon Footprint Of The Distribution Phase [A4]0.0132888727, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0005138857
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]69 kg CO2 eq., 68.6709333333
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506066EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRM22
Contacts Type And Composition2 C/O
Dielectric Test Voltage2.5 kV AC 50 Hz, 1 min IEC 60255-27
Housing Materialpolycarbonate
Measurement Range380...480 V voltage AC
Mounting Support35 mm DIN rail conforming to IEC 60715
Power Consumption In Va15-15 VA 480 V AC 60 Hz
Product Or Component Type3-phase control relay
Relay NameRM22TR
Reset Time1500 ms at maximum voltage
ReturnabilityYes
Setting Accuracy Of Time Delay10 P
Software VersionEIME v5.8.1
Supply Frequency50...60 Hz +/- 10 %
Sustainable PackagingYes
Threshold Adjustment Voltage2...20 % of Un selected
Time Delay Typewithout
Voltage Range380...480 V phase to phase
Measurement Range 4380...480 V voltage AC
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh140.16
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal90 mm
[Uc] Control Circuit Voltage380...480 V
Nbr. Of Units In Pkg.1
Take-backNo
Net Use Of Fresh Water (M3) Operational Energy Use [B6]248.992
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1197.12
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]174.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]174.4
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 70.8617047645
- Environmental Disclosure
- ENVPEP2506066EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminals)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2506066EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2506066EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Harmony Control Relays
Product Or Component Type3-phase control relay
ETIM
- ETIM 8
- EC001441
ETIM 9EC001441
Output Attributes
- Nominal Output Current
- 8 A
Output Contacts2 C/O
