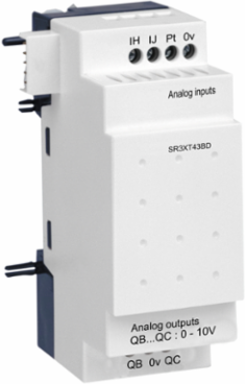

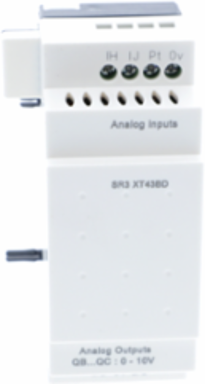

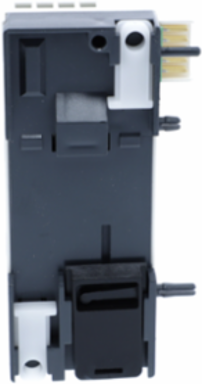

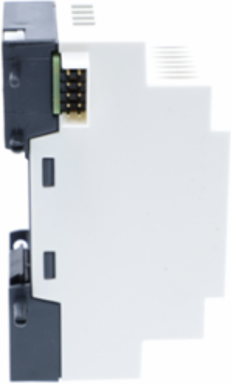

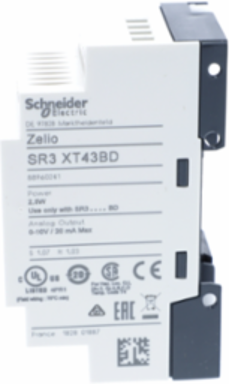

Telemecanique Sensors SR3XT43BD Zelio Logic Analogue IO Extension Module, 2 Inputs/Outputs, 24V DC
- MPN: SR3XT43BD
- PPN: SCH-SR3XT43BD
CAD
$240.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The analogue I/O extension module provides 2 input/outputs. It is an extension module with an analogue output range of 0 to 10V and a maximum load current of 10mA for analogue output. It provides 10bit on the input range and 10bit on the output range. The temperature probe is Pt 100, 3-wire conforming to IEC 751. It is furnished with screw terminal for electrical connections. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product meets EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Features
- The Schneider Electric SR3XT43BD is engineered exclusively for seamless, plug-and-play physical and electrical integration with the Zelio Logic SR3 modular smart relay series powered by a 24V DC supply. This matching architecture eliminates industrial communication bottleneck risks and complex configurations, allowing control engineers to instantly scale their existing automation footprint without upgrading to an expensive high-end PLC.
- This high-density expansion module provides exactly 4 analog I/Os, consisting of 2 analog inputs and 2 analog outputs, to bridge the gap between your modular controller and field instrumentation. It features built-in short-circuit protection on the outputs, preventing catastrophic electrical damage to your control loop during field wiring mishaps or sensor failures.
- To tackle varying industrial instrument signals, the two inputs offer exceptional field flexibility, supporting 0 10V voltage modes, 0 20mA current loops, and direct 3-wire Pt100 temperature probes conforming to IEC 751. The dual analog outputs deliver a stable 0 10V signal with a 10mA maximum load current, meaning you can comfortably drive variable frequency drives (VFDs), proportional valves, and process indicators without needing external signal conditioners.
- Equipped with an optimized 10-bit resolution across both input and output ranges, this module delivers crisp, reliable granularity such as a 9.8 mV LSB value on 0 10V ranges and a 0.15 C resolution for temperature monitoring. Combined with a tight conversion error threshold of +/- 1% of the full-scale value, it guarantees the highly repeatable measurement accuracy demanded by commercial HVAC, pumping, and material handling systems.
- Designed with space-saving efficiency in mind, this compact module measures just 35.5 mm wide, mounting instantly onto standard 35mm DIN rails via built-in retractable lugs. Heavy-duty integrated screw terminals accommodate solid or flexible wire sizes ranging from AWG 24 to AWG 14, streamlining field terminations while assuring rugged, vibration-resistant connections under continuous industrial operation.
- Built to thrive in demanding operating environments, the module features a robust IP20 terminal block rating and an IP40 front panel enclosure rating to shield internal components from dust and debris. It operates flawlessly across a wide temperature window from -20 C to 55 C (-4 F to 131 F) and carries global industrial certifications including UL, CSA, C-Tick, and GOST ensuring your control panel satisfies stringent regulatory compliance audits right out of the box.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typeanalogue I/O extension module
Complementary
- Lsb Value
- 0.15 °C, - 25...125 °C analogue input circuit || 20 µA, 0...20 mA analogue input circuit || 9.8 mV, 0...10 V analogue input circuit || 9.8 mV, 0...10 V analogue output
- Maximum Load Current
- 10 mA analogue output
- Conversion Error
- +/- 1 % of the full scale value 0...10 V 25 °C)analogue output || +/- 1 % of the full scale value 0...10 V 55 °C)analogue output || +/- 1 % 0...10 V 25 °C)analogue input circuit || +/- 1 % 0...10 V 55 °C)analogue input circuit || +/- 1 % 0...20 mA 25 °C)analogue input circuit || +/- 1 % 0...20 mA 55 °C)analogue input circuit || +/- 1.5 °C - 25...125 °C 25 °C)analogue input circuit || +/- 1.5 °C - 25...125 °C 55 °C)analogue input circuit
- Analogue Output Range
- 0...10 V
- Conversion Time
- smart relay cycle time analogue input circuit || smart relay cycle time analogue output
- Connections - Terminals
- screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid || screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Analogue Output Number
- 2
- Operating Distance
- 10 m with screened cable analogue input circuit || 10 m with screened cable analogue output
- Tightening Torque
- 0.5 N.m
- Analogue Input Resolution
- 10 bits on the input range
- Maximum Permissible Voltage
- 30 V analogue input circuit
- Repeat Accuracy
- < +/- 0.3 °C - 25...125 °C 25 °C analogue input circuit || <= +/- 1 % 0...10 V 25 °C analogue input circuit || <= +/- 1 % 0...10 V 55 °C analogue output || <= +/- 1 % 0...20 mA 25 °C analogue input circuit
Input Impedance18 kOhm 0...10 V analogue input circuit || 247 Ohm 0...20 mA analogue input circuit
Analogue Input Range0...10 V || 0...20 mA || -25...125 °C
Analogue Input Typecommon mode
Net Weight0.11 kg
Analogue Output Resolution10 bits on the output range
Analogue Input Number2
Short-Circuit Protectionwith analogue output
Reverse Polarity Protectionanalogue input circuit with
Temperature Probe TypePt 100, 3-wire IEC 751
[Imp] Maximum Permanent Current30 mA analogue input circuit
Load Typeresistive analogue output
Environment
- Product Certifications
- GOST || UL || C-Tick || CSA
- Disturbance Radiated/Conducted
- class B IEC 55022-11 Group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-12 || IEC 61000-4-5 || IEC 61000-4-3 || IEC 61000-4-4 level 3 || IEC 61000-4-6 level 3 || IEC 61000-4-2 level 3 || IEC 60068-2-6 Fc || IEC 61000-4-11 || IEC 60068-2-27 Ea
Ambient Air Temperature For Operation-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
