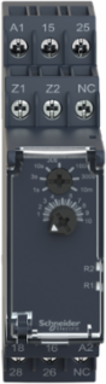

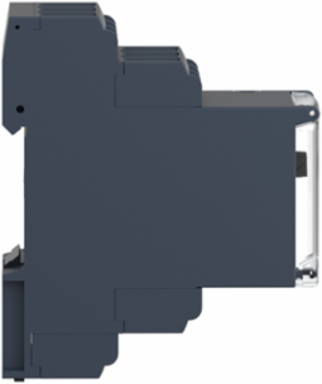

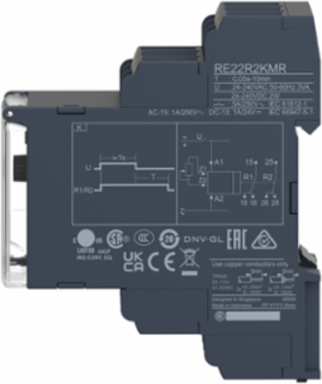

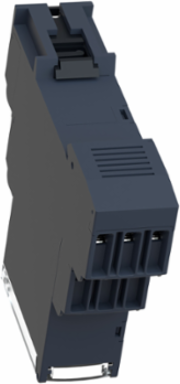

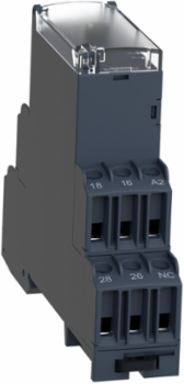

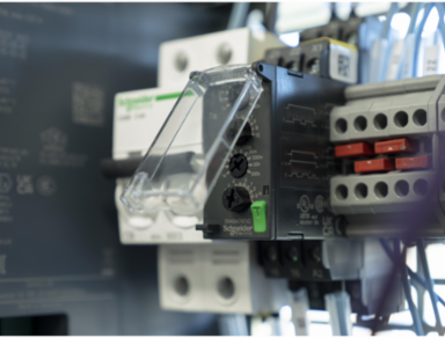

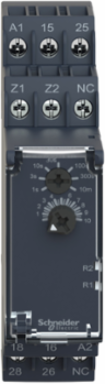

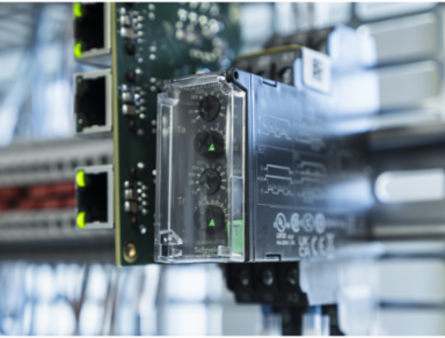

Schneider Electric RE22R2KMR Harmony Timer Relay, 5A, 0.05s-10min, 24-240V AC/DC, 22.5mm Width
- MPN: RE22R2KMR
- PPN: SCH-RE22R2KMR
CAD
$149.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

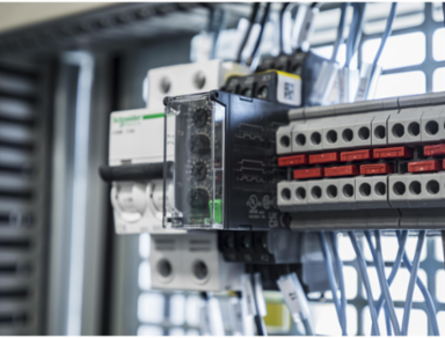

This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours. It provides function K and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Sweden, United States
Complementary Attributes
- Line Rated Current
- 5 A
- Maximum Switching Current
- 5 A
- Minimum Switching Current
- 10 mA 5 V DC
Maximum Delay Response350 ms
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Type And Composition
- 2 C/O timed contact, cadmium free, 2 C/O
- Electrical Durability
- 100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 5 A at 250 V, AC-1
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
- Status Led
- Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED steady)power ON
- Time Delay Range
- 10...100 s, 0.05...1 s, 30...300 s, 3...30 s, 1...10 min, 1...10 s, 0.3...3 s
- Voltage Drift
- +/- 0.2 %/V, +/- 0.2 %/V
- Certificate Agency
- EAC, UL, RCM, GL, CCC, CSA, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0129020913, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0005595627
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 3 kg CO2 eq., 3.21895
- Local Publishable Date
- 2026-03-26
- Future Imap
- 88.22
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2502020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Functionality
- off-delay timing
- Immunity To Microbreaks
- 10 ms
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Overvoltage Category
- III conforming to IEC 60664-1
- Power Consumption In W
- 2 W 240 V DC
- Product Or Component Type
- modular timing relay
- Reset Time
- 100 ms on de-energisation
- Software Version
- EIME 5.7.0.2
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Vibration Resistance
- 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
- Supply Voltage Num 3
- 24...240 V AC/DC 50/60 Hz
- Database Version
- 2018-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 6.57
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Uc] Control Circuit Voltage
- 24...240 V
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 109.0 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 36.5375
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 12.0015
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 64.29
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 56.115
- Water Pollution (M3) Operational Energy Use [B6]
- 132.825
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Typerotary knob, potentiometer external, with test button, with test button
Electromagnetic Compatibilityfast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Safety Reliability DataB10d = 160000, MTTFd = 171.2 years
Shock Resistance15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
Temperature Drift+/- 0.05 %/°C, +/- 0.05 %/°C

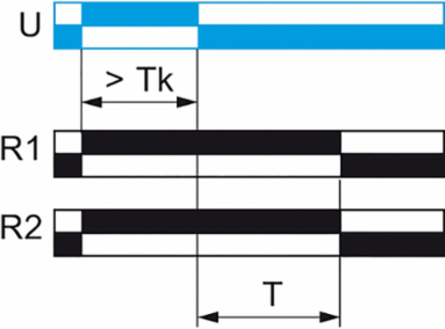

Time Delay Typeoff-delay - K-Delay on de-energization (without auxiliary supply), K, delay on de-energization
Contacts Composition2 C/O
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0602937262, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.9147338403
Local Data StatusPublishable
Return IndicatorY
Future Msrp98.46
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameRE22
Function AvailableK-Delay on de-energization (without auxiliary supply)-1 C/O
Housing Materialpolycarbonate
Insulation Resistance100 MOhm 500 V DC IEC 60664-1
Mounting Positionany position
Number Of Functions1
Power Consumption In Va3-3 VA 240 V AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
ReturnabilityYes
Supply Frequency50...60 Hz +/- 5 %
Switching Capacity In Va1250 VA
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Voltage Range0.85...1.1 Us
Pep CodeENVPEP2502020EN
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27

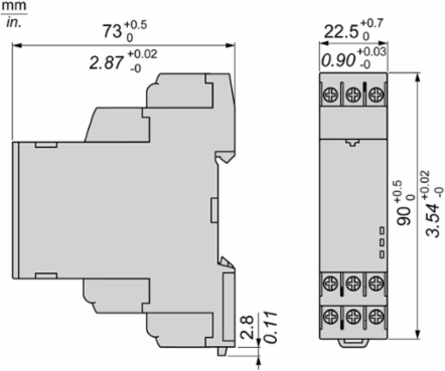

Width Nominal22.5 mm
[Uimp] Rated Impulse Withstand Voltage5 kV 1.2-50 µs IEC 60664-1
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]138.545
Net Use Of Fresh Water (M3) Operational Energy Use [B6]11.6715
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.115
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]8.175
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]8.175
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Directives
- 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 5.2074392205
- Environmental Disclosure
- ENVPEP2502020EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2502020EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2502020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 25-55 °C
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current5 A
Input Attributes
- Input Voltage
- <= 2.4 V, <= 2.4 V
