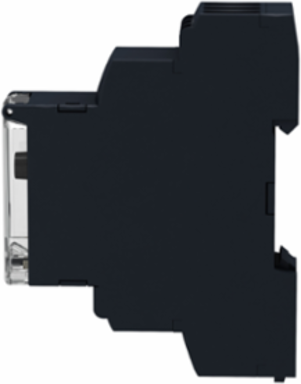

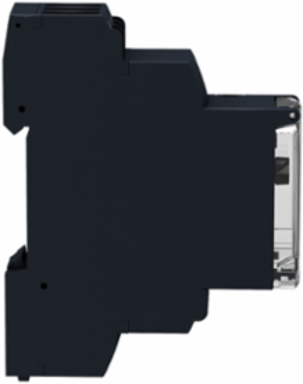

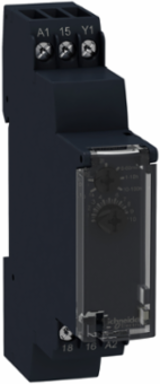

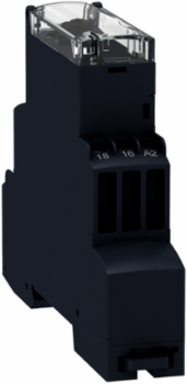

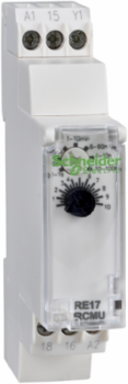

Schneider Electric RE17RCMU Harmony Timer Relay, 8A, 17.5mm, 1CO, 1s-100h, 24-240V AC/DC
- MPN: RE17RCMU
- PPN: SCH-RE17RCMU
CAD
$68.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers ON-Delay and OFF-delay Ac, C functions. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore, United States

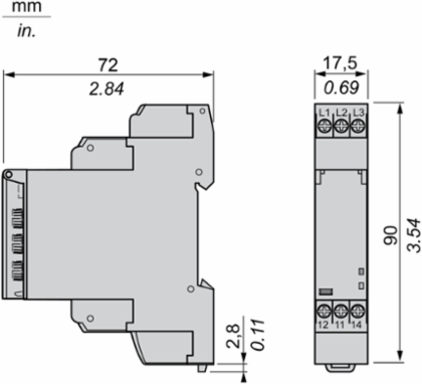

Depth72 mm
Complementary Attributes
- Impulse Duration
- 100 ms with load in parallel typical, 30 ms typical
- Maximum Delay Response
- 100 ms
- Maximum Switching Current
- 8 A AC/DC
- Minimum Switching Current
- 10 mA 5 V DC
Line Rated Current5 A
Maximum Power Consumption In W0.6 W 24 V DC
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch front panel, without test button, without test button
- Local Signalling
- LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Safety Reliability Data
- B10d = 270000, MTTFd = 296.8 years
- Temperature Drift
- +/- 0.05 %/°C, +/- 0.05 %/°C
- Time Delay Type
- off-delay - C- Off-delay relay w/ control signal, C, off-delay
- Contacts Composition
- 1 C/O
- Certificate Agency
- cULus, GL, CSA
- [Us] Rated Supply Voltage
- 24...240 V AC 50/60 Hz, 24 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06709103234696433, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.000639052582699191
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 51 kg CO2 eq., 50.94880139552928
- Local Publishable Date
- 2026-03-26
- Future Imap
- 44.92
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI121113EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1243
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RE17
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RE17R
- Electrical Durability
- 100000 cycles resistive 8 A 250 V AC
- Functionality
- off-delay timing
- Immunity To Microbreaks
- 20 ms
- Marking
- CE
- Mounting Position
- any position in relation to normal vertical mounting plane
- Number Of Functions
- 1
- Power Consumption In Va
- 0-32 VA 240 V AC
- Product Or Component Type
- modular timing relay
- Reset Time
- 120 ms on de-energisation typical
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Frequency
- 50...60 Hz +/- 5 %
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Vibration Resistance
- 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1211017EN
- Pep Verification Date
- 2025-10-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 90 mm
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2/50 µs
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Time Delay Range6...60 s, 1...10 h, 1...10 min, 6...60 min, 0.1...1 s, 1...10 s, 10...100 h
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Supply Voltage Num 324...240 V AC 50/60 Hz, 24 V DC
[Uc] Control Circuit Voltage24 V, 24...240 V
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2004705802313585, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.739695917470005
Local Data StatusPublishable
Return IndicatorY
Future Msrp50.13
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Creepage Distance4 kV/3 IEC 60664-1
Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Function AvailableC- Off-delay relay w/ control signal-1 C/O
Housing Materialpolycarbonate
Insulation Resistance100 MOhm 500 V DC IEC 60664-1
Mechanical Durability10000000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Operating Rate In Hz10 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
ReturnabilityYes
Software Versionv6.2.5-6
Sustainable PackagingYes
Total Lifecycle Carbon Footprint53 kg CO2 eq.
Voltage Range0.85...1.1 Us
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony RE17 timing relay can be set between 0.1 seconds and 100 hours which has an output rating of 8A with 7.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 change over contact SPDT (single pole double throw). It has one of market slimmest form-factors which allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers and product is adhering to international standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %13
Width Nominal17.5 mm
On-load Factor100 %
Package Weight(Lbs)80 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI121113EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-30
- Pep Verification Date
- 2025-10-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint52.95669797816031
Environmental DisclosureENVPEP1211017EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1211017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current8 A
Input Attributes
- Input Voltage
- 10 V
