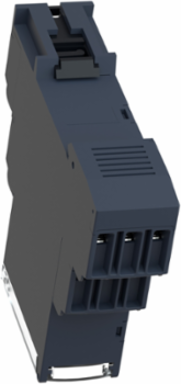

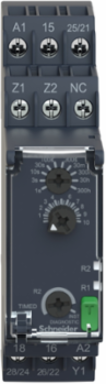

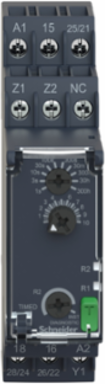

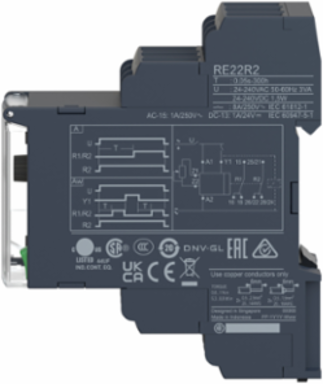

Schneider Electric RE22R2AMR Dual Function Timer Relay, 8A, 24...240V AC/DC, 0.05s...300h Timer Range

  • MPN: RE22R2AMR
  • PPN: SCH-RE22R2AMR
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $110.85

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

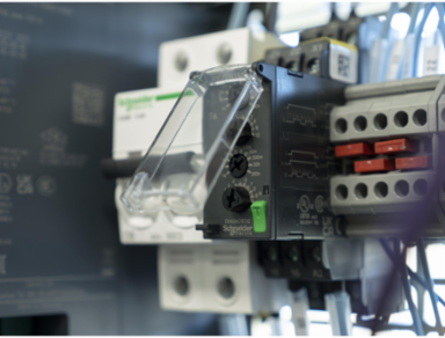

    This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Features

    • Part of the Harmony Timer Relays family, the RE22R2AMR is a dual-function, multi-range electronic timing relay.
    • This precise module is engineered with exactly 10 selectable time delay ranges configured across the front dial. This granular scaling provides exceptionally tight adjustment brackets across specific intervals starting from 0.05 seconds up to 300 hours. The sub-ranges include 0.05 to 1 second, 0.3 to 3 seconds, 1 to 10 seconds, 3 to 30 seconds, 10 to 100 seconds, 30 to 300 seconds, 3 to 30 minutes, 30 to 300 minutes, 3 to 30 hours, and 30 to 300 hours.
    • Engineered with an extremely flexible wide-range power supply transformer, the control circuit natively supports supply voltages spanning 24V to 240V AC/DC at 50/60 Hz. Drawing a remarkably lean maximum power consumption of 3 VA on AC networks or 1.5 Watts on DC control lines, it safely interfaces with low-voltage 24V PLC auxiliary buses.

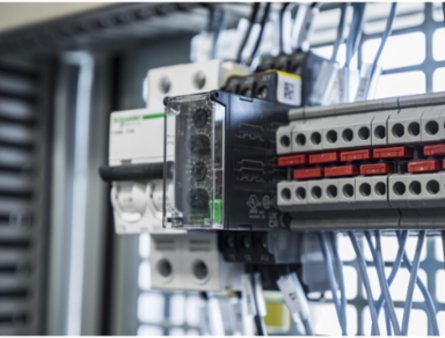

    • Boasting a slimline, space-saving design, this unit features a compact 22.5 mm width profile matching standard industrial modular footprints. It snaps firmly onto a standard 35 mm symmetrical DIN rail and is built with a direct mechanical screw-clamp termination system that tightly anchors solid or flexible wires from 24 AWG down to 14 AWG.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Singapore, United States

    Complementary Attributes

    Minimum Pulse Duration
    100 ms with load in parallel, 30 ms
    Maximum Delay Response
    100 ms
    Maximum Switching Voltage
    250 V AC
    Line Rated Current5 A
    Maximum Switching Current8 A
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contacts Type And Composition
    1 C/O timed contact, cadmium free, 1 C/O timed or instantaneous contact, cadmium free, 2 C/O
    Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1

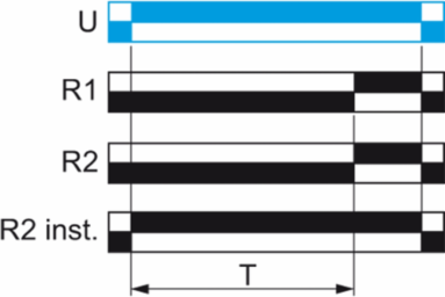

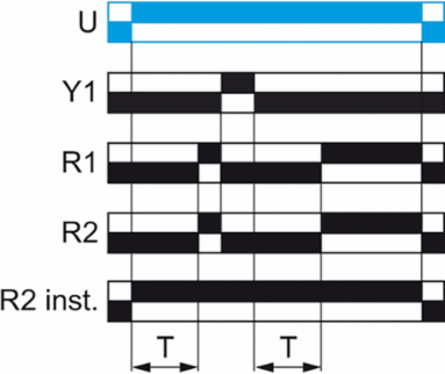

    Function Available
    A- Power on-delay relay-2 C/O, Aw- Power on-delay relay w/ retrigger/restart-2 C/O
    Safety Reliability Data
    B10d = 200000, MTTFd = 216.8 years
    Shock Resistance
    15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
    Temperature Drift
    +/- 0.05 %/°C, +/- 0.05 %/°C
    Time Delay Type
    power on-delay - A- Power on-delay relay, power on-delay - Aw- Power on-delay relay w/ retrigger/restart, A, Aw, power on-delay
    Contacts Composition
    2 C/O

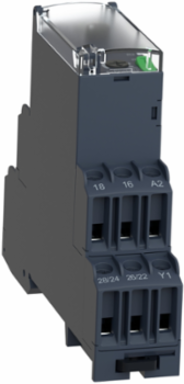

    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.0633084125, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    2 kg CO2 eq., 2.0104705323
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    73.66
    Stock Policy
    1
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2502020EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Creepage Distance
    4 kV/3 IEC 60664-1
    Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
    Housing Material
    polycarbonate
    Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
    Mounting Position
    any position
    Number Of Functions
    2
    Power Consumption In Va
    3-3 VA 240 V AC
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony Timer Relays
    Returnability
    Yes
    Supply Frequency
    50...60 Hz +/- 5 %
    Switching Capacity In Va
    2000 VA
    Total Lifecycle Carbon Footprint
    54 kg CO2 eq.
    Voltage Range
    0.85...1.1 Us
    Pep Code
    ENVPEP2502020EN
    Pep Verification Date
    2018-04-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27

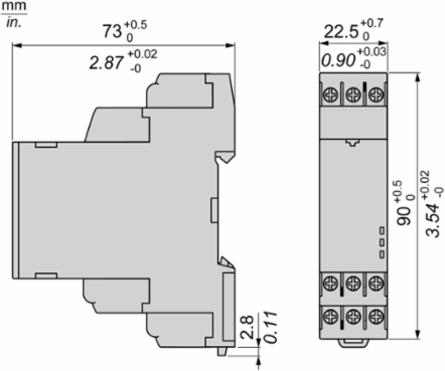

    Width Nominal
    22.5 mm
    [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2-50 µs IEC 60664-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Operational Energy Use [B6]
    2216.72
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    51.5032
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    192.024
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    1028.64
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    897.84
    Water Pollution (M3) Operational Energy Use [B6]
    2125.2
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Control Typerotary knob, diagnostic button, potentiometer external, with test button, with test button
    Electromagnetic Compatibilityfast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
    Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
    Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
    Status LedGreen LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised
    Time Delay Range0.05...1 s, 0.3...3 s, 3...30 h, 30...300 min, 10...100 s, 30...300 s, 3...30 s, 30...300 h, 1...10 s, 3...30 min
    Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
    Certificate AgencyCE, CCC, GL, UL, RCM, EAC, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0135471958, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0005875409
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]52 kg CO2 eq., 51.5032
    Local Publishable Date2026-03-26
    Future Imap66
    Stocking FlagY
    Use Carbon Footprint51.5032
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameRE22
    Functionalityon-delay timing
    Immunity To Microbreaks10 ms
    Mechanical Durability10000000 cycles
    Mounting Support35 mm DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Power Consumption In W1.5 W 240 V DC
    Product Or Component Typemodular timing relay
    Reset Time120 ms on de-energisation
    Software VersionEIME 5.7.0.2
    Sustainable PackagingYes
    Tightening Torque0.6-1 N.m IEC 60947-1
    Vibration Resistance20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
    Supply Voltage Num 324...240 V AC/DC 50/60 Hz
    Database Version2018-03
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime, In Kwh105.12
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    [Uc] Control Circuit Voltage24...240 V
    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
    Package Weight(Lbs)114.0 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]584.6
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]186.744
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]897.84
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]130.8
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]130.8

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-60 °C, -20-60 °C
    Directives
    2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    53.5911136816
    Environmental Disclosure
    ENVPEP2502020EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2502020EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2502020EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 25-55 °C
    Pep Verification Date2018-04-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    modular timing relay
    Range Of ProductHarmony Timer Relays

    ETIM

    ETIM 8
    EC001439
    ETIM 9EC001439

    Output Attributes

    Discrete Output Type
    relay
    Output Type
    relay
    Nominal Output Current8 A

    Input Attributes

    Input Voltage
    <= 2.4 V, <= 2.4 V
