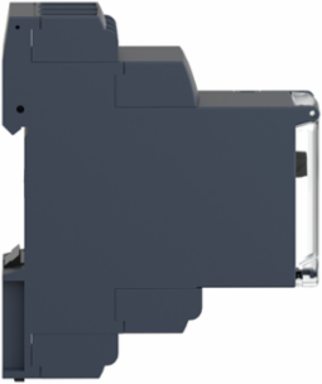

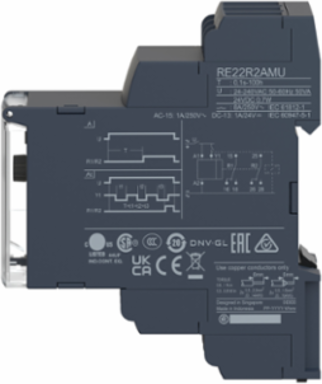

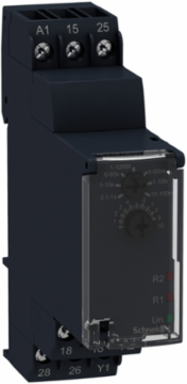

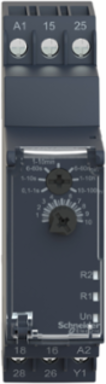

Schneider Electric RE22R2AMU Dual Function Relay 8A 2CO 0.1s-100h Power On Delay 22.5mm Width

  • MPN: RE22R2AMU
  • PPN: SCH-RE22R2AMU
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $102.49

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RE22 modular single function timer can be set between 0.1 seconds and 100 hours. It provides function A and At and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, United States

    Complementary Attributes

    Line Rated Current
    5 A
    Maximum Switching Current
    8 mA
    Minimum Pulse Duration
    30 ms100 ms under load
    Maximum Delay Response100 ms
    Maximum Switching Voltage250 V
    Minimum Switching Current10 mA 5 V

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Type
    rotary knob front panel, with test button, with test button
    Function Available
    A- Power on-delay relay-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O
    Safety Reliability Data
    MTTFd = 182.6 years, B10d = 170000
    Temperature Drift
    +/- 0.05 %/°C, +/- 0.05 %/°C
    Time Delay Type
    - A- relay, - At- relay w/ pause/summation (Y1), A, At, power on-delay
    Contacts Composition
    2 C/O
    Certificate Agency
    cULus, CE, EAC, CSA, RCM, CCC, GL
    [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2-50 µs IEC 60664-1, 5 kV IEC 61812-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.013289154, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0005763496
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    52 kg CO2 eq., 51.5032
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Service Catalog Item
    Finished good
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1401008EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Contacts Type And Composition
    timed contact2 C/O
    Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
    Functionality
    on-delay timing
    Immunity To Microbreaks
    10 ms
    Mechanical Durability
    10000000 cycles
    Mounting Support
    35 mm DIN rail conforming to IEC 60715
    Power Consumption In Va
    50-50 VA 240 V AC
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony Timer Relays
    Returnability
    Yes
    Software Version
    EIME 5.7.0.2
    Supply Frequency
    50...60 Hz +/- 5 %
    Tightening Torque
    0.6-1 N.m IEC 60947-1
    Vibration Resistance
    20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
    Pep Code
    ENVPEP1401008EN
    Pep Verification Date
    2018-04-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    22.5 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Operational Energy Use [B6]
    2216.72
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    51.5032
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    192.024
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    1028.64
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    897.84
    Water Pollution (M3) Operational Energy Use [B6]
    2125.2
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, conducted and radiated emissions class B conforming to EN 55022
    Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
    Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
    Time Delay Range1...10 min, 10...100 h, 1...10 s, 0.1...1 s, 6...60 s, 6...60 min, 1...10 h
    Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
    Supply Voltage Num 324...240 V AC, 24 V DC
    [Uc] Control Circuit Voltage24 V, 24...240 V
    Connections - Terminalsscrew terminals, 2 x 1.5 mm² with cable endscrew terminals, 2 x 2.5 mm² without cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.062102538, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.9721758555
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Use Carbon Footprint51.5032
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameRE22
    Electrical Durability100000 cycles for resistive load, 8 A at 250 V, AC
    Housing Materialpolycarbonate
    Insulation Resistance100 MOhm 500 V DC IEC 60664-1
    Mounting Positionany position in relation to normal vertical mounting plane
    Number Of Functions2
    Power Consumption In W0.7 W 24 V DC
    Product Or Component Typemodular timing relay
    Reset Time120 ms on de-energisation
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Status LedGreen LED flashing)timing in progressGreen LED steady)power ONYellow LEDrelay energised
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint54 kg CO2 eq.
    Voltage Range0.85...1.1 Us
    Database Version2018-03
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime In Kwh105.12
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    [Us] Rated Supply Voltage24...240 V AC24 V DC
    Package Weight(Lbs)103.0 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]584.6
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]186.744
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]897.84
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]130.8
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]130.8
    Customs Code8536490080

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-60 °C, -20-60 °C
    Directives
    2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    53.5513438971
    Environmental Disclosure
    ENVPEP1401008EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1401008EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
    Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529IP20 terminal block: conforming to IEC 60529, IP40 front face: conforming to IEC 60529
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1401008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Relative Humidity93-93 %, without condensation IEC 60068-2-30
    Pep Verification Date2018-04-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    modular timing relay
    Range Of ProductHarmony Timer Relays

    ETIM

    ETIM 8
    EC001439
    ETIM 9EC001439

    Output Attributes

    Discrete Output Type
    relay
    Output Type
    relay
    Nominal Output Current8 A
