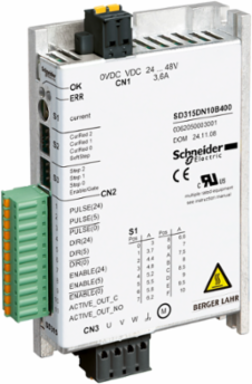

Schneider Electric SD315DN10B400 Motion Control Stepper Motor Drive - 10A, 24-48V, IP20, 74.5mm x 117mm
- MPN: SD315DN10B400
- PPN: SCH-SD315DN10B400
CAD
$1611.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. It is a motor drive with a rated supply voltage of 24V to 48V and a motor phase current of 10A. It features natural convection cooling. It is an IP20 rated product. Its dimensions are 74.5mm (width) x 23.5mm (depth) x 117mm (height). It weighs 0.25kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE, CUL and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2 and EN/IEC 61800-3 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth23.5 mm
Communications & Management Attributes
- Communication Interface
- pulse/direction, Integrated
Complementary Attributes
- Maximum Input Frequency
- 200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals
- Maximum Leakage Current
- 30 mA
- Maximum Switching Current
- 200 mA readiness signal output)
Maximum Voltage Drop<1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output<1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output
Maximum Motor Phase Current10 A
Maximum Switching Voltage30 V DC readiness signal output)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electromagnetic Compatibility
- electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
- Power Losses
- <= 7 W, <= 7 W
- Voltage State 0 Guaranteed
- <= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.4 V 5 V optocoupler input signals, <= 0.4 V 5 V optocoupler input signals<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.4 V 5 V optocoupler input signals, <= 0.4 V 5 V optocoupler input signals
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11343202081114533, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1231974644857364
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 110 kg CO2 eq., 109.77966836886965
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- <= 7.5 mA<= 7.5 mA
- Format Of The Drive
- block
- Network Number Of Phases
- 1
- Phase
- single phase
- Product Or Component Type
- motion stepper drive
- Returnability
- No
- Software Version
- v6.2.5-6
- Supply Voltage Limits
- 19-60 V
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Voltage State 1 Guaranteed
- 15...30 V 24 V optocoupler input signals2.5...5.25 V 5 V optocoupler input signals
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To drive 3-phase stepper motors 70% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Production mix; low voltage; 2022; Germany, DE
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Germany, DE
- Recyclability Potential In %
- 98
- Width Nominal
- 74.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED - ERR, 1 LED - RUN
Residual Ripple< 5 % 24 V control voltage), < 5 % 24 V control voltage)< 5 % 24 V control voltage), < 5 % 24 V control voltage)
Certificate AgencycUL, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.48523019930150224, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 23.503820206624603
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI111103EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Associated Fuse Rating10 A
Device Short NameSD315
MarkingCE
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium SD3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage Descriptionsingle phase 24 V
Supply Voltage TypeDC
Total Lifecycle Carbon Footprint134 kg CO2 eq.
Vibration Resistance1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1111015EN
Pep Verification Date2026-06-30
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal117 mm
[Us] Rated Supply Voltage24...48 V - 15...10 %
Package Weight(Lbs)322.900 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 134.00534826009263
- Circularity Profile
- ENVEOLI111103EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1111015EN
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP1111015EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2026-06-30
Psr VersionNo PSR
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium SD3
Product Or Component Typemotion stepper drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Maximum Input Frequency
- 200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals
Input Current25 mA 5 V optocoupler input signals7 mA 24 V optocoupler input signals
