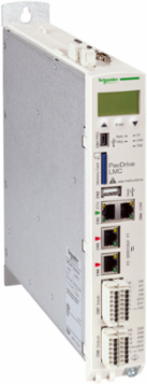

Schneider Electric LMC101CAA150RC Motion Controller 270mm H, 4 Axis, 80 License Points Included
- MPN: LMC101CAA150RC
- PPN: SCH-LMC101CAA150RC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Motion Controller is engineered for advanced automation and control applications, featuring a robust design that accommodates up to four axes for precise motion management. At a height of 270mm, this versatile controller comes equipped with 80 license points included, providing extensive functionality for intricate task execution. Ideal for various industrial settings, its innovative capabilities streamline the integration and deployment of complex automated systems, making it a reliable choice for engineers and panel builders alike looking to enhance operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth222 mm
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 master encoder1 serial link RJ45 RS232/RS485, 1 CAN port SUB-D 9 CANopen1 USB port USB type A
- Maximum Leakage Current
- 0.5 mA
Maximum Cable Distance Between Devices<50 m<50 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Anti Bounce Filtering
- 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input
- Certificate Agency
- EAC, CE, CSA, cULus
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403026EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Number Of Axis
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- PacDrive 3
- Shock Resistance
- 150 m/s² 6 ms operation)IEC 60721-3-3
- Sustainable Packaging
- No
- Vibration Resistance
- 3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
- Height Nominal
- 270 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer
Programming LanguageST (structured text), LD (ladder), IL (instruction list), FBD (function block diagram), SFC (sequential function chart), CFC (continuous function chart)
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Memory Type512 MB RAM DDR2128 kB NVRAM
Power Consumption In W30 W
Product Or Component TypeMotion controller
ReturnabilityYes
Supplypower supply 24 VDC
Type Of License80 license point(s)
Pep CodeENVPEP1403026EN
Width Nominal44 mm
Maximum Number Of I/O Expansion Module1
Package Weight(Lbs)2.2 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Disclosure
- ENVPEP1403026EN
- Ip Degree Of Protection
- IP20IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- LMC101
- Relative Humidity
- 5-95 % without condensation
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1403026EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403026EN
General Attributes
- Product Or Component Type
- Motion controller
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 500 mA digital output
Discrete Output Number8 digital output
Surge Protection And Filtering Attributes
- Anti Bounce Filtering
- 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input
Input Attributes
- Discrete Input Voltage
- - 3...5 V, 15...30 V, - 3...5 V
- Discrete Input Number
- 8 digital input IEC 61131-2 Type 14 touch probe input IEC 61131-2 Type 1
Discrete Input Current4 mA digital input
Discrete Input Voltage TypeDC
