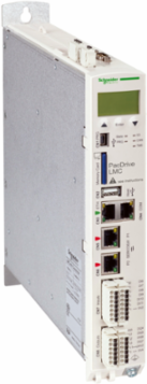

Schneider Electric LMC201CAA170RC Motion Controller with 160 License Points, 2.2 kg, IP20 Protection
- MPN: LMC201CAA170RC
- PPN: SCH-LMC201CAA170RC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric LMC201CAA170RC Motion Controller offers a robust solution for automation and control applications, featuring 160 license points for flexible configuration and scalability. Weighing in at just 2.2 kg, this controller is designed to streamline motion control tasks efficiently within its IP20 protection rating, making it suitable for various industrial settings. With Schneider Electric's commitment to innovation, this motion controller helps optimize performance in PLC, HMI, and data acquisition operations, ensuring reliable functionality and operational excellence.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | PacDrive 3 |
|---|
| Product Or Component Type | motion controller |
|---|
Complementary
| Anti Bounce Filtering | 100 µs...4.29 s configurable digital input || 100 µs...4.29 s configurable touch probe input || 100 µs...4.29 s configurable interrupt input |
|---|---|
| Memory Type | 512 MB RAM DDR2 || 128 kB NVRAM |
| Height | 270 mm |
| Discrete Input Voltage | 15...30 V || - 3...5 V |
| Integrated Connection Type | 2 Ethernet port RJ45 Sercos || 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP || 1 Ethernet port RJ45 master encoder || 1 serial link RJ45 RS232/RS485 || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A |
| Discrete Input Current | 4 mA digital input |
| Discrete Output Number | 8 digital output |
| Depth | 222 mm |
| Supply | power supply 24 VDC |
| Maximum Leakage Current | 0.5 mA |
| Discrete Output Current | 500 mA digital output |
| Maximum Number Of I/O Expansion Module | 1 |
| [Us] Rated Supply Voltage | 24 V DC |
|---|---|
| Maximum Cable Distance Between Devices | <50 m |
| Type Of License | 160 license point(s) |
| Programming Language | SFC (sequential function chart) || IL (instruction list) || ST (structured text) || FBD (function block diagram) || LD (ladder) || CFC (continuous function chart) |
| Discrete Input Voltage Type | DC |
| Power Consumption In W | 30 W |
| Width | 44 mm |
| Product Compatibility | LMC201 |
| Number Of Axis | 8 |
| Net Weight | 2.2 kg |
| Discrete Input Number | 8 digital input IEC 61131-2 Type 1 || 4 touch probe input IEC 61131-2 Type 1 |
Environment
| Product Certifications | CSA || CE || cULus || EAC |
|---|---|
| Standards | UL 508 || EN/IEC 61131-2 || CSA C22.2 No 14 || CSA C22.2 No 142 |
| Ambient Air Temperature For Operation | 5-55 °C |
| Vibration Resistance | 3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz |
| Operating Altitude | 0...2000 m |
| Pollution Degree | 2 IEC 61131-2 |
|---|---|
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20EN/IEC 60529 |
| Shock Resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1403026EN |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1403026EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
