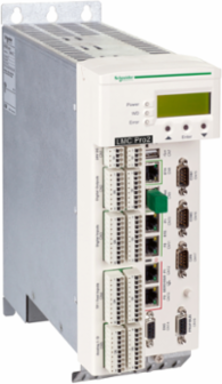

Schneider Electric LMC402CBC10000 Motion Controller 16 Axis, 36W, 310mm Height, 243mm Depth, IP20
Schneider Electric LMC402CBC10000 Motion Controller 16 Axis, 36W, 310mm Height, 243mm Depth, IP20
- MPN: LMC402CBC10000
- PPN: SCH-LMC402CBC10000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LMC402CBC10000 Motion Controller is a sophisticated solution designed to manage up to 16 axes of motion control, making it an ideal choice for complex automation applications. With a power rating of 36W, this controller provides reliable performance in demanding industrial environments. Its compact dimensions, measuring 310mm in height and 243mm in depth, ensure that it can fit seamlessly into tight spaces without sacrificing functionality. Rated at IP20, it offers essential protection against dust, making it suitable for various automation and control settings. This motion controller is a vital component for enhancing efficiency and precision in industrial production processes.
Specifications
- Number of Axis
- 16
- Rated Supply Voltage
- 24 V DC
- Discrete Input Voltage Type
- DC
- Analogue Input Type
- voltage analog input -10...10 V, current analog input -20...20 mA
- Discrete Input Current
- 5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Discrete Output Current
- 250 mA digital output
- Maximum Number of I/O Expansion Module
- 2
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T FTP/HTTP, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet, 1 port SUB-D 9 Profibus DP, 1 COM1 serial link SUB-D 9 RS232, 1 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder
- Height
- 310 mm (12.20 in)
- Width
- 100 mm (3.94 in)
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 150 m/s² 6 ms operation
- Pvc Free
- Yes
- Product Certifications
- CE, CSA, EAC, cULus
Power Consumption36 W
Discrete Input Voltage0...6 V, 20...33 V
Analogue Input Number2
Analogue Input Resolution12 bits
Input Impedance100000 Ohm analog input, 500 Ohm
Discrete Output Number16 digital output, 2 analog output
Maximum Leakage Current0.4 mA
Memory Type256 kB NVRAM, 1 GB RAM DDR3L
SupplyPower supply 24 VDC, <1 A
Depth243 mm (9.57 in)
Net Weight3.5 kg (7.72 lb)
Ambient Air Temperature for Operation5-55 °C (41-131 °F)
Vibration Resistance3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
IP Degree of ProtectionIP20 EN/IEC 60529
Mercury FreeYes
StandardsCSA C22.2 No 14, EN/IEC 61131-2, CSA C22.2 No 274, UL 508C
