Motion Servo Drive 4.5kW 200-240V Three Phase
Schneider Electric

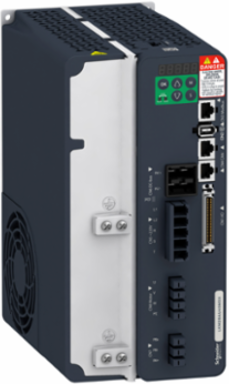

Schneider Electric LXM28AU45M3X Motion Servo Drive 4.5kW 200-240V Three Phase

  • MPN: LXM28AU45M3X
  • PPN: SCH-LXM28AU45M3X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2584.26

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The LXM28AU45M3X Motion Servo Drive from Schneider Electric is engineered to provide exceptional performance in automation and motion control applications. With a powerful output of 4.5 kW, this three-phase drive operates efficiently within a voltage range of 200 to 240V, making it well-suited for various industrial environments. Designed for seamless integration, it enhances system precision and reliability, enabling advanced motion control capabilities. This servo drive is an essential component for those seeking to optimize their automation processes and achieve superior control in their machinery and equipment.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Switzerland, China, France, Sweden
    Depth186 mm

    Communications & Management Attributes

    Communication Interface
    CANopen, Integrated, CANmotion, Integrated

    Complementary Attributes

    Line Rated Current
    22.8 A
    Maximum Current Irms
    61.0 A
    Maximum Operational Altitude
    3000.0 m
    Minimum Operational Altitude
    0.0 m
    Maximum Ambient Air Temperature For Operation55.0 °C
    Maximum Leakage Current1.55 mA
    Minimum Ambient Air Temperature For Operation0.0 °C

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Electrical Connection
    spring terminal 6 mm², 10 AWG L1-L2), spring terminal 6 mm², 10 AWG R, S, T), spring terminal 6 mm², 10 AWG U, V, W, PE), spring terminal 6 mm², 10 AWG PA/+, PBe)
    Protection Type
    against reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
    Status Led
    1 LED (Red) charge1 LED (Green) RUN, 1 LED (Red) error
    Certificate Agency
    CE, cULus
    Carbon Footprint Of The Distribution Phase [A4]
    0.6435531081, 0.6 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0483161946
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    9 218 kg CO2 eq., 9218.1241963174
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Motion - drive & motor
    Traceability
    Yes
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    4
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Continuous Power
    4500 W 220 V
    Derating Altitude Start
    1000.0 m
    Device Short Name
    LXM28A
    Electrical Isolation
    between power and control
    Emc Filter
    without EMC filter
    Field Weakening
    false
    Line Current
    17.9 A 147.1 % 220 V, three phase
    Method Of Access
    slave
    Minimum Operational Altitude
    0.0 m
    Network Number Of Phases
    3
    Nominal Voltage
    220 V three phase
    Operating Position
    vertical
    Phase
    three phase
    Product Or Component Type
    motion servo drive
    Returnability
    No
    Shock Resistance
    10 gn, type I IEC 60721-3-3
    Software Version
    EIME v5.6.0.1
    Supply Voltage
    200-240 V three phase
    Supply Voltage Limits
    200-255 V three phase
    Switching Frequency
    8 kHz
    Type Of Cable
    shielded motor cable 0-55 °C) copper
    Vibration Resistance
    3M4 3 mm 9-200 Hz)IEC 60721-3-3
    Pep Code
    ENVPEP1409001EN
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control AC-servo motors BCH2 100% of the time for 10 years
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime In Kwh
    18814.764
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    116 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    MarkingCE, cULus
    Safety LevelSIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012
    Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
    [Us] Rated Supply Voltage200...240 V - 10...15 %)three phase, 230 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2.2803248649, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]85 kg CO2 eq., 84.8398135135
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1409001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1906
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier4
    Function OptionAdvanced
    Market SegmentationIndustrial
    Connector TypeRJ45 CN4)CANopen, CANmotion
    Control Signal Typeservo motor encoder feedback CN2
    Derating Temperature Start40.0 °C
    Drive Voltage Drop Coefficient1
    Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
    Emc Filter Compatibilitytype 023
    Format Of The Drivecompact housing
    Maximum Operational Altitude3000.0 m
    Minimum Ambient Air Temperature For Operation0.0 °C
    Network Frequency47.5...63 Hz
    Nominal Power4.5 kW 220 V 8 kHz
    Number Of Addresses1-127 CANopen, CANmotion
    Overvoltage CategoryIII
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductLexium 28
    Safety FunctionSTO (safe torque off), Integrated
    Signalling Functionservo status and fault codes five 7-segment display units
    Supply Frequency50/60 Hz - 5...5 %
    Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint9 306 kg CO2 eq.
    Type Of Coolingintegrated fan
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Height Nominal234 mm
    Maximum [In] Rated Current22.8 A
    Package Weight(Lbs)4.910 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-65 °C, -25-65 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    9305.9362039985
    Circularity Profile
    ENVEOLI1409001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Product Compatibility
    servo motor BCH2 180 mm, 3 4500 Wservo motor BCH2 180 mm, 2 3500 W
    Relative Humidity
    5-95 % without condensation
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-55 °C
    Environmental DisclosureENVPEP1409001EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1409001EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    three phase
    Range Of Product
    Lexium 28
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Output Current 3s Peak
    220 V, 61 A
    Continuous Output Current
    22.9 A 8 kHz
    Discrete Output Number
    5 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1)
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Logicpositive or negative CN1)
    Discrete Output Voltage12...24 V DC

    Surge Protection And Filtering Attributes

    Emc Filter
    without EMC filter
    Emc Filter Compatibilitytype 023

    Input Attributes

    Analogue Input Type
    V_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
    Discrete Input Logic
    positive or negative CN1)
    Discrete Input Voltage
    24 V DC logic
    Analogue Input Number2
    Discrete Input Number8 programmable CN1)1 pulse train input (PTI) CN1)2 fast capture CN1)1 safety function STO CN9)
