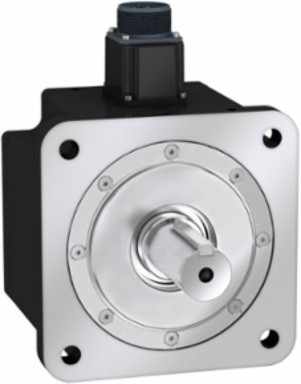

Schneider Electric BCH2MR3522CA6C servo motor BCH, Lexium 28, 180mm, 3500W, 53.56kg.cm², with oil seal, smooth, straight connection
Schneider Electric BCH2MR3522CA6C servo motor BCH, Lexium 28, 180mm, 3500W, 53.56kg.cm², with oil seal, smooth, straight connection
- MPN: BCH2MR3522CA6C
- PPN: SCH-BCH2MR3522CA6C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3466.63/ EA
Description
servo motor BCH, Lexium 28, 180mm, 3500W, 53.56kg.cm², with oil seal, smooth, straight connection
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 200 mm
- Continuous Power
- 3500 W
- Product Compatibility
- LXM28... servo drive 3.5 kW, 220 V, three phase
- Maximum Radial Force Fr
- 1200 N 2000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 53.56 kg.cm²
- Maximum Axial Force Fa
- 497 N
- Holding Brake
- without
- Brake Pull-In Power
- 49.6 W
- Maximum Current Irms
- 57.8 A LXM28... 3.5 kW, 220 V
- Net Weight
- 18.5 kg
- Stator Inductance
- 2.93 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V
- Peak Stall Torque
- 50.3 N.m LXM28... 22.9 A, 220 V, three phase
- Distance Shaft Shoulder-Flange
- 4 mm
- Mounting Holes Diameter
- 13.5 mm
- Shaft End
- smooth shaft
- Feedback Type
- 20 bits single turn absolute encoder
- Continuous Stall Current
- 16.55 A
- Torque Constant
- 1.01 N.m/A 20 °C
Maximum Permanent Current19 A
Maximum Mechanical Speed3000 rpm
Stator Electrical Time Constant18.66 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks2
Back Emf Constant61 V/krpm 20 °C
Centring Collar Depth4 mm
Shaft Length79 mm
Network Number Of Phasesthree phase
Length202 mm
Centring Collar Diameter114.3 mm
Motor Flange Size180 mm
Nominal Output Power3500 W LXM28... 22.9 A, 220 V, three phase
Number Of Mounting Holes4
Shaft Diameter35 mm
Type Of Coolingnatural convection
Nominal Speed2000 rpm LXM28... 22.9 A, 220 V, three phase
Stator Resistance0.157 Ohm 20 °C
Nominal Torque16.7 N.m LXM28... 22.9 A, 220 V, three phase
Continuous Stall Torque16.7 N.m LXM28... 22.9 A, 220 V, three phase
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1504002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
