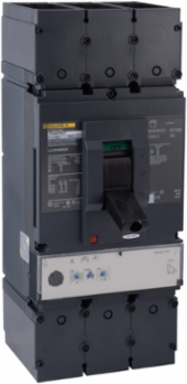

Square D LJL36400M38X PowerPacT L Motor Circuit Protector 400A 3 Pole 600VAC 25kA
- MPN: LJL36400M38X
- PPN: SCH-LJL36400M38X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric LJL36400M38X PowerPacT L Motor Circuit Protector is engineered to provide robust protection for motors in demanding applications. With a substantial current rating of 400A and built for 3-pole configurations at 600VAC, this circuit breaker ensures dependable performance in power distribution systems. Its high breaking capacity of 25kA enhances operational safety, making it an essential component for any industrial or commercial setting where reliable circuit protection is paramount. This molded case circuit breaker exemplifies Schneider Electric's commitment to quality and innovation in electrical solutions.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 400 A
- Rated Service Breaking Capacity
- 65 kA 220/240 V AC, 35 kA 380/440/415 V AC, 18 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC IEC 60947-2
- Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Conventional Free Air Thermal Current
- 190-348 A
- Protection Technology
- Current limiter
- Tightening Torque
- 50 N.m (442.54 lbf.in)
- Height
- 340 mm (13.39 in)
- Depth
- 110 mm (4.33 in)
- AWG Gauge
- 2 x AWG 2/0 to 500 kcmil aluminum/copper
- Circuit Breaker Application
- HACR rated
- Product Certifications
- UL, CSA, NOM
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Country of Origin
- US
- Terminal Identifier
- AL600LS52K3
- RoHS Compliance
- Compliant with exemptions
- PVC Free
- Yes
- Mounting Mode
- Unit mount lug
- Network Frequency
- 50/60 Hz
- Device Application
- Distribution
- Product Name
- PowerPact L
- Suitability For Isolation
- Yes IEC 60947-2
- Trip Unit Name
- MicroLogic 2.3 M
Number of Poles3
Breaking Capacity100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC, 20 kA 250 V DC UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Trip Unit TechnologyElectronic, MicroLogic 2.3 M, LSoI
Control TypeToggle
Wire Stripping Length31 mm (1.22 in), 61 mm (2.40 in)
Width140 mm (5.51 in)
Net Weight6.2 kg (13.67 lb)
Communication InterfaceModbus, Ethernet
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
IP Degree of ProtectionFront cover IP40
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude< 2000 m without derating, up to 5000 m with derating
Poles Description3P
Breaking Capacity CodeJ
Mercury FreeYes
Mounting SupportLug
Electrical ConnectionLine lugs, Load lugs
Local SignallingLED indicators: ready (green), alarm 95% Ith (red), trip indicator (green)
Device Short NameL-Frame
RangePowerPact
Utilisation CategoryCategory A
