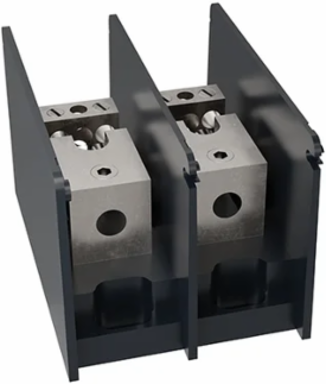

Mersen MPDB67562 Power Distribution Block, 2-Pole, 1000V, 175A, #2-#14 Secondary Range
- MPN: MPDB67562
- UPC: 782001449469
- PPN: FER-MPDB67562
CAD
$154.99
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Features
- The Mersen MPDB67562 features a robust 2-pole intermediate design, providing an efficient way to split primary power or handle cable splicing across two separate conductors simultaneously. This dual-pole architecture minimizes panel layout complexity and cuts down on installation space, allowing industrial control panel builders and commercial electricians to streamline high-density wiring configurations.
- Engineered with premium tin-plated aluminum box connectors, this block eliminates galvanic corrosion concerns when terminating dissimilar metals. It safely accepts either copper or aluminum conductors spanning a primary range of 14 to 2/0 AWG and a secondary range of #2 to #14 AWG giving you total job site flexibility to run available wire types without buying specialized blocks.
- This block provides one primary opening and six secondary openings per pole, delivering a structured 1-to-6 split to cleanly route power to downline branch components. Rated up to 175 Amps for copper (135 Amps for aluminum) at a massive 1000V AC/DC, it supplies plenty of overhead for demanding industrial automation and commercial feeder systems.
- When paired with properly sized upstream fuses (such as Class J, T, or CC), this power distribution block boasts a high short-circuit current rating (SCCR) of up to 100 kA. This structural resilience prevents catastrophic failure during a fault condition, ensuring your panel easily complies with stringent UL 508A.
- The base is molded from a virtually unbreakable, glass-filled polycarbonate material featuring a UL94-V0 flammability rating and a dielectric strength exceeding 2500V. This premium material maintains its structural integrity across 60 C, 75 C, and 90 C wiring systems, resisting cracks and electrical tracking even when mounted in harsh, high-vibration industrial enclosures.
- Built as an open-style block compliant with UL 1953 safety regulations.
Documentation & Downloads
Specifications
Key Specifications
| Rated voltage AC UL | 1000 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating (CU) | 175 A |
| AC or DC | AC/DC |
| Short Circuit Rating (Class G) | 100 kA with 60A Fuse |
| Short Circuit Rating (Class L) | 100 kA with 200A Fuse |
| Short Circuit Rating (Class RK5) | 100 kA with 30A Fuse |
| Short Circuit Rating (Class T) | 100 kA with 200A Fuse |
| Connector Material | Tin-plated Aluminum |
| Number of Openings per Pole (Secondary) | 6 |
| Connector Type (Secondary) | Box |
| Hex/Screw Size & Type (Secondary) | 5/16-24 x .38 |
| Hole Diameter (Secondary) | 0.31 in |
| Torque Rating (Secondary) | #2-#3 50; #4-#6 35; #8 25; #10-#14 20 |
| Wire Range (Secondary) | #2-#14 |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Length | 3.08 in |
| Weight | 1.1 lb |
| Rated voltage DC UL | 1000 V |
|---|---|
| Ampere Rating (AL) | 135 A |
| ROHS Compliant | Yes |
| Short Circuit Rating (Class CC) | 100 kA with 30A Fuse |
| Short Circuit Rating (Class J) | 100 kA with 200A Fuse |
| Short Circuit Rating (Class RK1) | 100 kA with 100A Fuse |
| Short Circuit Rating (Standalone) | 10 kA |
| Number of Poles | 2-Pole |
| Number of Openings per Pole (Primary) | 1 |
| Connector Type (Primary) | Box |
| Hex/Screw Size & Type (Primary) | 7/16-20 x .55 |
| Hole Diameter (Primary) | 0.44 in |
| Torque Rating (Primary) | 2/0-#6 120; #8-#14 50 |
| Wire Range (Primary) | 2/0-#14 |
| Installation Mounting | Direct Screw Mount |
| Width | 3.57 in |
| Height | 3.25 in |
