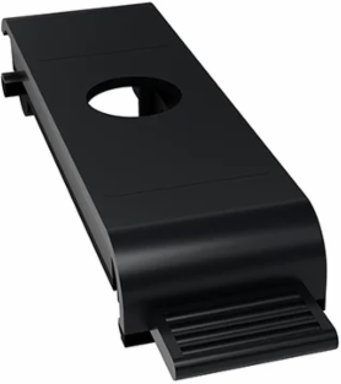

Mersen MPDBC6263 Mini Power Distribution Block, 1000V AC/DC, UL Listed, 1 Inch Spacing
Mersen MPDBC6263 Mini Power Distribution Block, 1000V AC/DC, UL Listed, 1 Inch Spacing
- MPN: MPDBC6263
- UPC: 782001449339
- PPN: FER-MPDBC6263
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.02/ EA
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Specifications
- Voltage
- 1000 V AC/DC
- Short Circuit Rating
- 10 kA
- Frequency
- 50/60 Hz
- Width
- 1.05 in
- Weight
- 0.01 lb
- Mounting
- Direct panel mount
- Dielectric Strength
- >2500 V
- Operating Temperature
- 60/75ºC (Copper), 60/75/90ºC (Aluminum)
- Series
- MPDB62, MPDB63 (Miniature)
- Secondary Outputs
- Up to 30
SCCR100 kA with properly sized fuse
Ampere Range65 to 2260 A
Length5.7 in
Height0.08 in
MaterialAluminum, Copper
Insulating MaterialGlass-filled polycarbonate
FlammabilityUL94-V0
ROHS CompliantYes
Primary InputsSingle or dual conductor
