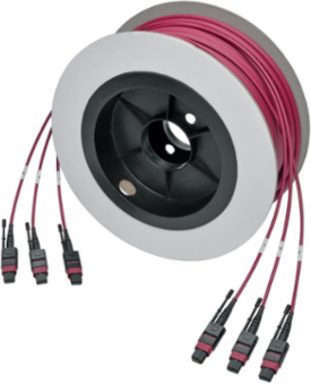

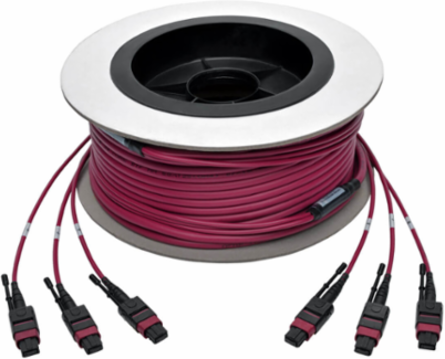

Tripp Lite N858-23M-3X8-MG Multimode Base-8 Trunk Cable 24-Strand 40/100Gb OM4 Magenta 75 ft.

MPN: N858-23M-3X8-MG
UPC: 037332200198
PPN: TRP-N858-23M-3X8-MG

$1977.46

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

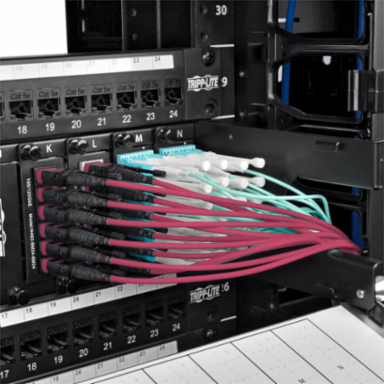

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density connections between network equipment in telecom rooms and data centers.

Features

Push/pull tab connectors install/remove with one hand

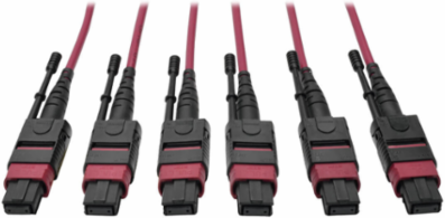

8-fiber MTP/MPO connectors with 12x density of SC connectors
100% tested for low insertion loss and back reflection
50/125 OM4-rated multimode fiber
Magenta color for easy OM4 identification
This product is covered by a Lifetime Limited Warranty ( coverage details )

Specifications

Additional

Network Speed	10Gbps / 40Gbps / 100Gbps
Attenuation @ 1300NM	1.0 dB/Km
Storage Temperature Range	-4 to 140 F (-20 to 60 C)
Number of Fibers	8
Clad Diameter	125 micron
Connector Type	8-fiber female MTP/MPO
Side B Connector	(3) 8-strand MTP (female)
Technology	Multimode; MTP/MPO
Jacket Rating	Plenum-rated
Connector Density	12x density of SC connectors
Warranty	Lifetime limited warranty

Attenuation @ 850NM	3.0 dB/Km
Operating Temperature Range	-4 to 140 F (-20 to 60 C)
Cable Length	75.6 ft
Strand Count	24
Core Diameter	50 micron
Side A Connector	(3) 8-strand MTP (female)
Push/Pull Tabs	Yes
Optical Mode	OM4
Jacket Material	Ruggedized, bend-insensitive fiber
Color	Magenta
