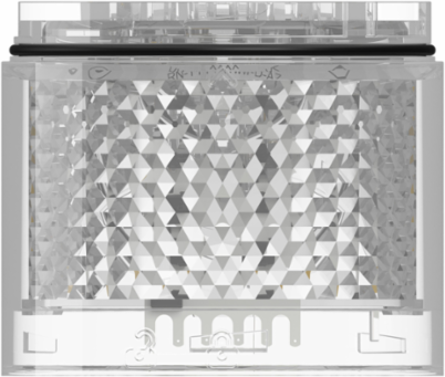

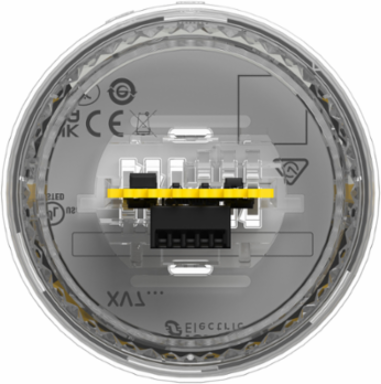

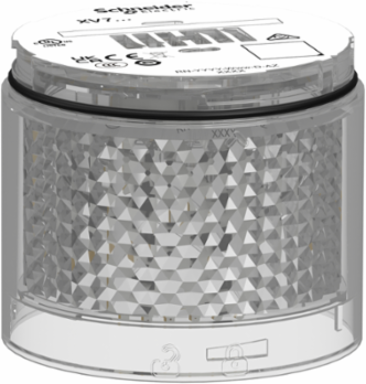

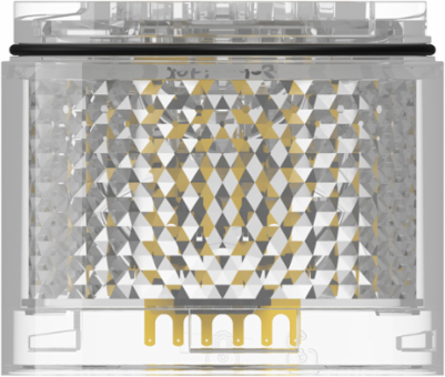

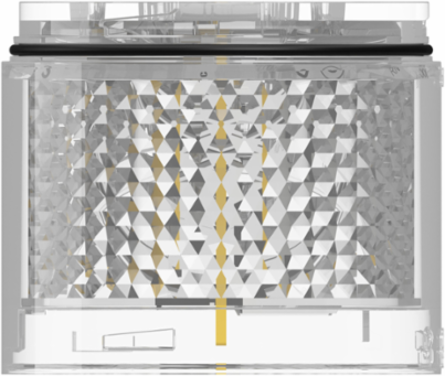

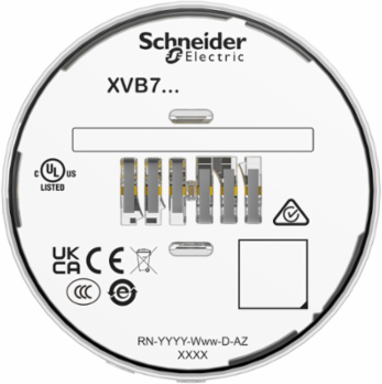

Schneider Electric XVB7CM9 Light Module, Harmony XVB7 Modular Tower Light, Multi Pattern & Colored, Ø70mm, Clear Lens
- MPN: XVB7CM9
- PPN: SCH-XVB7CM9
CAD
$285.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Module, Harmony XVB7 Modular Tower Light, Multi Pattern & Colored, Ø70mm, Clear Lens
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Device Composition
- standard lens, standard lens
- Certificate Agency
- cULus, CCC, RCM, UKCA, CE
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.10357696641852975
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.1357501415333293
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-10-08
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2501028EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2447
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Control Type
- DIP switch for color/light pattern
- Device Short Name
- XVB7
- Inrush Current
- 0.5 A
- Material
- PC (polycarbonate)
- Mounting Position
- upright/inverted
- Product Or Component Type
- light module
- Returnability
- Yes
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Light Source 1 Light Block Color
- multi-colour
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This product is a highly customizable visual and audible signal indicator that can be precisely controlled through an IO-Link which is typically mounted on a tower used to alert people of a specific status or condition from a distance often by flashing a bright light and can indicate things like machine operation, warnings, hazards particularly in industrial applications with highly visible warning or status indicator with 360-degree visibility in life span of 10 years.This product will be active for 73% of the time with a power consumption of 3.168W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 89
- [Ui] Rated Insulation Voltage
- 50 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809051
Signalling Typemulti function, multi function
Carbon Footprint Of The Distribution Phase [A4]0.03778626756415652, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005791771561749369, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.284640418658784
Local Publishable Date2026-03-26
Pre Comm Date2024-10-08
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Current Consumption50 mA 24 V AC55 mA 24 V DC
Electrical Shock Protection Classclass II
Light SourceLED, multi-colour
Mounting Diameter70 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVB7
Service Life In Hours50000 h
Software Versionv6.2.4
Total Lifecycle Carbon Footprint17 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2501028EN
Pep Verification Date2025-04-03
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ue] Rated Operational Voltage24 V AC/DC
[Uimp] Rated Impulse Withstand Voltage0.5 kV
Package Weight(Lbs)107.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 16.562332971330974
- Environmental Disclosure
- ENVPEP2501028EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501028EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
