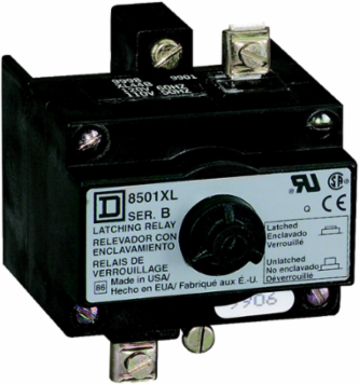

Square D 8501XLV02 NEMA Control Relay Type X 110/120 VAC, Mechanical Latch, 73 mm Height
- MPN: 8501XLV02
- UPC: 785901028475
- PPN: SCH-8501XLV02
CAD
$215.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X NEMA machine tool relay has a variety of attachments to improve its flexibility. This mechanical latch attachment holds all contacts in the relay switched even after the removal of power from the latching coil. This latch attachment provides sequence memory in the event of power loss. This attachment is often used for press control, process control and punch press applications. Latch attachment has a continuously rated 110/120 VAC 50/60 Hz replaceable unlatching coil, which means no coil clearing contacts are required. This latch attachment is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
Depth75 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc AC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL recognized E78403 CCN NKCR2, CE, CSA LR60905 class 3211 02
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.7088149340496978
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4825332103425115
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1310013EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 18 AWG...12 AWG copper
- Inrush Power In Va
- 148-148 VA 60 Hz143-143 VA 50 Hz
- Product Or Component Type
- latching device
- Relay Type
- control relay
- Software Version
- v5.9.4
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminals
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 73 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz120 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 171.75
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3662.9
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 2.3127
- Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]
- 0.1082
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.2721
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 487.2
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 487.2
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.05278968627938213, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10303084885157825, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]172 kg CO2 eq., 171.93
Local Publishable Date2026-01-12
Stocking FlagY
Use Carbon Footprint171.93
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionscrew clamp terminals
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501X
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint175 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %70
Width Nominal57 mm
Hold-in Power Consumption In Va23-23 VA 60 Hz25-25 VA 50 Hz
Package Weight(Lbs)403.697 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]171.93
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2047.3
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]147.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]25.418
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4150.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3662.9
Water Use (M3 Eq) Operational Energy Use [B6]6.1736
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 175.27716867952316
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1310013EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1310013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- latching device
Range Of Product8501X
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
