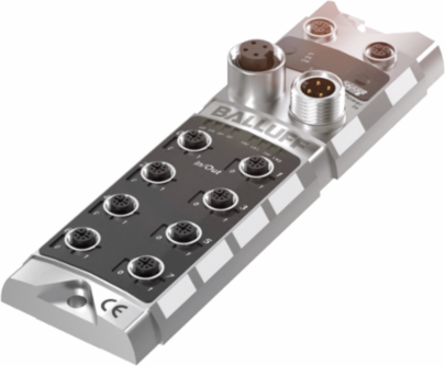

Balluff BNI PBS-302-101-Z001 Network blocks for Profibus BNI PBS-302-101-Z001
- MPN: BNI PBS-302-101-Z001
- PPN: BAL-BNI0047
CAD
$517.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
As a full-service provider, Balluff offers a wide range of components for optimum Profibus use. The mature fieldbus technology has been reliably supporting modern production for many years. Regardless of the controller manufacturer, you will find the optimum solution in our range of products.
Documentation & Downloads
Specifications
Key Specifications
- Principle of operation
- Active splitter
- Operating voltage Ub
- 18-30.2 VDC
- Connection (COM 2)
- Bus out: M12x1-Female, 5-pin, B-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 5-pin
- Digital inputs
- 16x PNP, Type 2
- Configurable inputs/outputs
- yes
- Current sum UA, actuator
- 9.0 A
- Dimension
- 68 x 37.9 x 224 mm
- IP rating
- IP67
InterfaceProfibus DP EN 50170
Connection (COM 1)Bus in: M12x1-Male, 5-pin, B-coded
Connection (supply voltage IN)7/8"-Male, 5-pin
Connection ports8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A
Housing materialZinc, Die casting
Ambient temperature-5-70 °C
