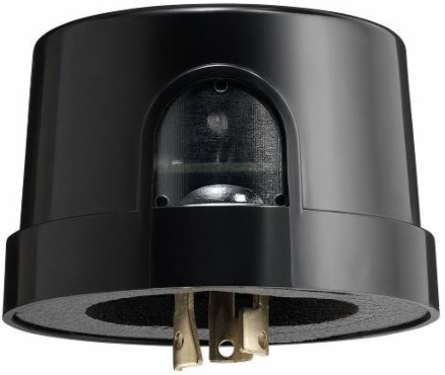

Intermatic EK4536KL NightFox Pro Locking Electronic Photocontrol, 120-277 V
- MPN: EK4536KL
- PPN: INT-EK4536KL
CAD
$32.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NightFox Pro Locking Electronic Photocontrol, 120-277 V
Specifications
Key Specifications
| Photocontrol Style | Locking type |
|---|---|
| Input Voltages Display | 120-277 VAC, 50/60 Hz |
| Incandescent Load Ratings | 1000 W, 120-277 VAC, 50/60 Hz |
| Activation Off | 2.25 fc |
| Sensor Time Delay | 2 sec to 5 sec |
| Wire Lead Length (mm) | 0 |
| Operating Temperature Max (F) | 158 |
| Operating Temperature Min (F) | -40 |
| Product Weight (kg) | 0.113 |
| Product Height (mm) | 60.3 |
| Housing Material | Polycarbonate with Acrylic Window |
| Photocontrol Sensor Location | Side |
|---|---|
| Inductive | 1800 VA, 120-277 VAC, 50/60 Hz |
| Electronic Ballast | 6 A, 120-277 VAC, 50/60 Hz |
| Activation On | 1.5 fc |
| Surge Protection | 510 J MOV |
| Operating Temperature Max (°C) | 70 |
| Operating Temperature Min (°C) | -40 |
| Cover Color | Black |
| Product Weight (lbs) | 0.25 |
| Warranty | 10-year limited |
| Fail Mode | ON |
Related Accessories and Parts
| K171H | ANSI C136.41 7 PIN Locking type Receptacle (9" Lead) |
|---|---|
| K121-30 | ANSI C136.10 Locking Type NEMA Receptacle, (30" lead), gasket included |
| K121 | ANSI C136.10 Locking Type NEMA Receptacle, (9" lead), gasket included |
|---|---|
| K122 | ANSI C136.10 Sealed Locking Type NEMA Receptacle with Pole Bracket |
