Copper Compression Terminal, Tin Plated, 650 kcmil, 1-7/16 Inch Strip Length, 3/8 Inch Bolt Size

Documentation & Downloads

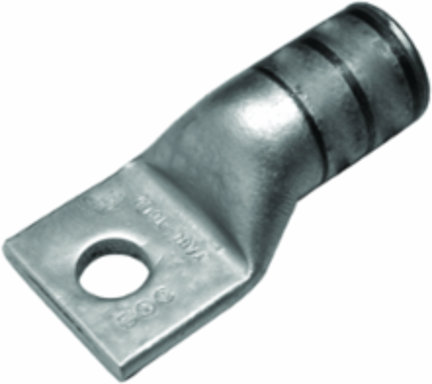

Burndy YAG40LTC38FX Copper Compression Terminal, Tin Plated, 650 kcmil, 1-7/16 Inch Strip Length, 3/8 Inch Bolt Size

MPN: YAG40LTC38FX
UPC: 781810194348
PPN: BUR-25015648

CAD

$122.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Compression Terminal

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction: 1-7/16 in

Dimension - Bolt Hole Size inch: 0.39 in

Dimension - Hole Size inch: 0.40 in

Dimension - L Length Overall mm: 87 mm

Dimension - N inch: 0.50 in

Dimension - Pad Width inch: 1.96 in

Dimension - Stud Size inch: 3/8

Physical Attribute - Tongue Angle: Straight

Dimension - B Length inch1.42 in

Dimension - Bolt Size fraction3/8

Dimension - Hole Size mm10 mm

Dimension - Length Overall inch3.42 in

Dimension - Outside Diameter inch1.35 in

Dimension - Strip Length inch1-7/16 in

Dimension - Z inch0.52 in

Certifications and Compliance

Certification - CSA Approved: Yes

Certification - UL Recognized: No

Standards - RoHS Compliance Status: CM

Certification - ETLNo

Certification - cULusNo

UL ListedYes

Conductor Related

Conductor - Copper DLO Size: 646 kcmil; (1600/24)

Conductor - Copper Flex H Size: 650 kcmil

Conductor - Copper Flex K Size: 650 kcmil

Conductor - Material: Copper

Conductor - Copper Flex G Size650 kcmil

Conductor - Copper Flex I Size650 kcmil

Conductor - Copper Flex M Size650

General

Color Code: Black

Die Index: 24

Feature - Barrel Type: Standard

Physical Attribute - Number of Holes: 1

Plating Type: Tin

Type: Standard Barrel, Tin Plated

UPC 12 Digit: 7818101943488

Connector TypeTerminal

Feature - Barrel StyleChamfered

MaterialCopper

PlatedY

Trade NameHYLUG™

UPC781810194348

Electrical Ratings

Rating - KVA: 35 kV

Voltage - Maximum: 35000

Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity: 150
