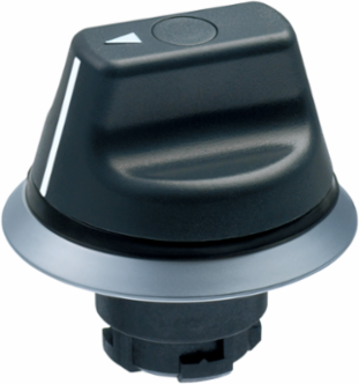

Schmersal 101164748 NWS32 Selector Switch, 3 Positions, 11 mm Height, IP67/IP69K, ABS
- MPN: 101164748
- PPN: SCM-101164748
CAD
$86.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NWS32 Selector Switch, 3 Positions, 11 mm Height, IP67/IP69K, ABS
Documentation & Downloads
Specifications
Key Specifications
- Height
- 11 mm
Electrical data
- Switching element
- latching
Number of contact elements, maximum2
Mechanical data - Dimensions
- Height
- 11 mm
- Length of the handle
- 28 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Spacing
- 50 x 50 mm
diameters for the actuating heads44.5 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
General data - Features
- Latching
- Yes
- Number of plunger
- 2
Fully insulatedYes
Number of switch positions3
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Short toggle
- Toggle
- short
- Material of the operators
- ABS
- Colour of the operating element
- Black
- Colour of the handle
- Grey
- Gross weight
- 35 g
VersionsSelector switch
Installation conditions (mechanical)arbitrarily
Sealing typeMembrane | Lip gaskets
Material of the front ringABS, chrome-plated
Colour of the front ringSilver
Colour of the bellowsBlack
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature+0 ... +80 °C
Restistance to shock50 g
Mechanical data
- Unlocking
- Rotating unlatcher
- Mechanical life, minimum
- 100,000 Operations
- Switching angle, right
- 35 °
- Mounting
- Mounting flange EFM
Latching positionleft | right
Switching angle, left35 °
Actuating force, approx.0.2 N
Tightening torque of the screw0.6 Nm
Approvals - Standards
- Certificates
- BG | cULus | CCC | IPA
