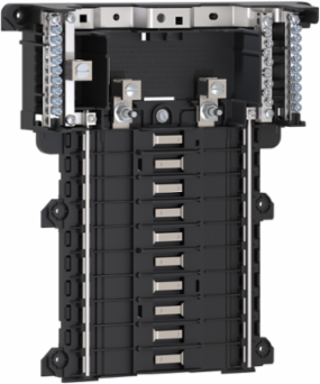

Square D QON120L125PI Load Center Interior, 20 Spaces, 125A, 120/240V AC, 11.50 Inch Height
- MPN: QON120L125PI
- UPC: 785901453444
- PPN: SCH-QON120L125PI
CAD
$377.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for optimal performance and reliability, this mounting base is part of Schneider Electric's QO range, featuring a robust 20-space configuration and accommodating a line-rated current of 125 A. With a compact height of 11.50 inches and a width of 10.62 inches, it is engineered for 1-phase, 3-wire systems, making it an ideal choice for various electrical installations. This load center interior is built to handle operational voltages of 120/240 V AC and is compatible with AWG 6 to AWG 2/0 aluminum or copper wiring, ensuring versatility in application. Please note the product carries a warning regarding exposure to lead and lead compounds, in compliance with California Proposition 65, highlighting the importance of safety in your electrical projects.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth2.38 in
Complementary Attributes
- Line Rated Current
- 125 A
Ue Rated Operational Voltage120/240 V AC
Important Information Attributes
- Persona Type Ids
- EU, OM
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1942
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Type
- QO
- Energy Efficiency Optimized
- False
- Mounting Mode
- plug-on
- Number Of Spaces
- 20
- Phase
- 1 phase 3 wires
- Product Or Component Type
- mounting base
- Returnability
- Yes
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Height Nominal
- 11.50 in
- Certificate Agency
- UL Recognized
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Publishable Date2026-06-02
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg GaugeAWG 6...AWG 2/0 aluminium/copper
Device Compositiongrounding bar (ordered separately)
Load Center TypePoN Convertible Mains (lugs)
Number Of Circuits24
Number Of Tandem Circuit Breakers4
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Short Circuit Current10 kA
Tightening Torque50 lb.in, AWG 6...AWG 2/0, aluminium/copper
Pep CodeENVPEP2212001EN
Width Nominal10.62 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP2212001EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
Product Or Component Typemounting base
