Schneider Electric

Schneider Electric TM171ARS232 Modicon M171 Performance Plug-in RS232 with relay

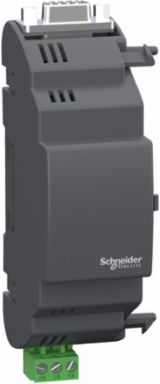

Modicon M171 Performance Plug-in RS232 with relay
  • MPN: TM171ARS232
  • PPN: SCH-TM171ARS232

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$97.14/ EA

Description

Modicon M171 Performance Plug-in RS232 with relay

Specifications

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Rohs Exemption InformationYes
UpgradeabilityUpgradeable through digital modules and upgraded components
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Communication Port Protocol
RS232 || Modbus RTU and ASCII
Product Or Component Type
communication module
Range Of ProductModicon M171

Complementary

Adjustment
pitch 5 mm
Physical Interface
90° insertion - 2.5-2.5 mm² cable || DB9 connector
Supply
via base board TM171P/TM172
Net Weight
0.077 kg
Integrated Connection TypeRS232 wire crimp - twisted pair
Electrical Connection3 removable screw terminal block
Product Compatibilitylogic controller M171 performance || logic controller M172 performance

Environment

Product Certifications
CSA || EAC || CE || cURus
Ambient Air Temperature For Storage
-20-85 °C
Marking
CE
Ambient Air Temperature For Operation-10-55 °C
Relative Humidity10-90 % without condensation
Ip Degree Of ProtectionIP20
