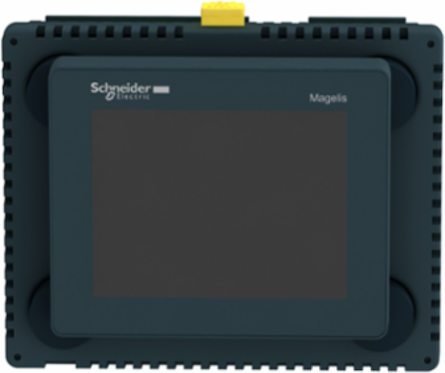

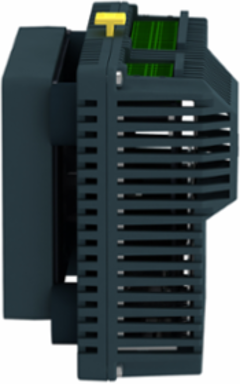

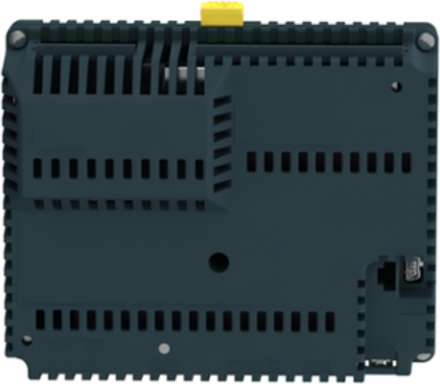

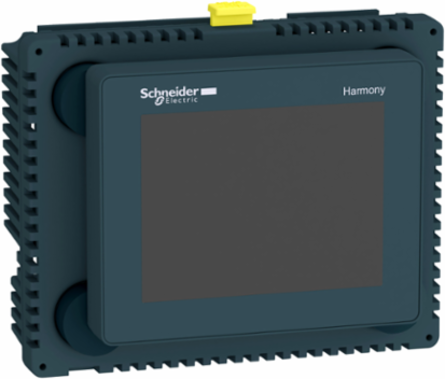

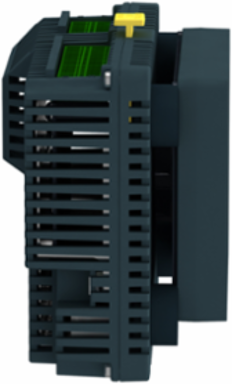

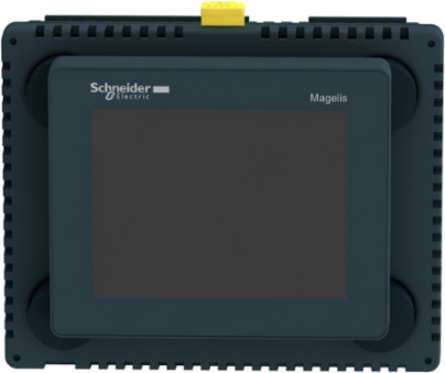

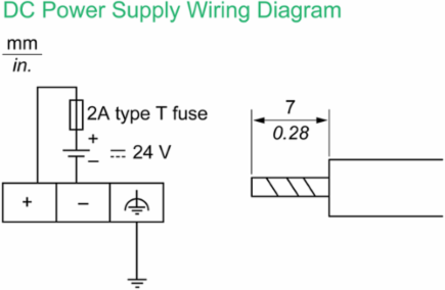

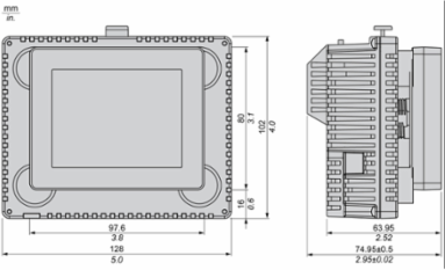

Schneider Electric HMISCU6A5 Harmony SCU HMI Controller, 3.5 Inch Color Display, 16 Digital Inputs, 10 Outputs
- MPN: HMISCU6A5
- PPN: SCH-HMISCU6A5
CAD
$1148.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 16 digital inputs, 10 digital outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, Indonesia, United States
Depth102 mm
Physical Attributes
- Display Size
- 3.5 inch
Complementary Attributes
- Integrated Connection Type
- 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A, CANopen master bus - SUB-D 9
- Maximum Input Frequency
- 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
- Maximum Pressure
- 800...1114 hPa
Maximum Cable Distance Between Devicesshielded cable <10 m fast input, shielded cable <100 m digital input, unshielded cable <50 m digital input
Maximum Output Frequency100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- Japanese (ANK, Kanji), ASCII, Taiwanese (traditional Chinese), Korean, Chinese (simplified Chinese)
- Downloadable Protocols
- CANopen, Modbus TCP/IP, Modbus
- Insulation Resistance
- > 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
- Number Of Common Point
- 1 fast input (HSC mode), 2 digital input
- Shock Resistance
- 147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
- View Angle Horiz X Vert
- 60° left, 60° right, 40° top, 60° bottom
- Input/Output Number
- 2 fast input FI0...FI1, 14 digital input DI0...DI13, 2 fast output FQ0...FQ1, 8 digital output DQ0...DQ7
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.30279590275206714, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 68 kg CO2 eq., 68.06446994940146
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 2
- Function Option
- Standard
- Brightness
- 16 levels via touch panel
- Display Resolution
- 320 x 240 pixels QVGA
- Enclosure Material
- PC/PBT
- Fixing Mode
- by 1 nut Ø 22 mm 1...6 mm thick panel
- Immunity To Microbreaks
- 10 ms
- Isolation Between Channels
- none
- Local Signalling
- no indicator
- Number Of Pages
- limited by internal memory capacity
- Processor Frequency
- 333 MHz
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony SCU
- Returnability
- Yes
- Software Package
- SoMachine
- Supply
- external source
- Total Lifecycle Carbon Footprint
- 684 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 1314
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 74.95 mm
- [Us] Rated Supply Voltage
- 24 V 20.4-28.8 V)DC
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Configurable Filtering Time0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Memory Descriptionflash NAND, 128 MB, internal data storage FRAM, 128 kB, application run DRAM, 128 MB
Sensor Power Supply15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA, 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
Vibration Resistance+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, 1 gn 9-150 Hz) IEC 60068-2-6
Certificate AgencycULus 508, cUL 1604 Class 1 Division 2, KCC, C-tick, cULus CSA 22-2 No 142, GOST, UKCA, UKEX
Carbon Footprint Of The Distribution Phase [A4]0.08378526471677157, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.22242902628656055
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]616 kg CO2 eq., 615.6461538461538
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1405010EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch3.5 mm
Display Typebacklit LED colour TFT LCD
Environmental Characteristiccorrosive gas free
Overvoltage Protectionwith
Inrush Current30 A
Isolation Between Channels And Internal Logic500 V DC
MarkingCE
Power Consumption In W15 W
Processor NameARM926EJ-S
Product Or Component Typesmall touch HMI controller
Realtime Clockbuilt-in
Software DesignationSoMachine
Software Versionv5.9.4
Sustainable PackagingNo
Touch Panelanalogue
Pep CodeENVPEP1405010EN
Pep Verification Date2023-11-28
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %7
Width Nominal128 mm
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)1.217 kg
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP1405010EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Storage Altitude
- 0-10000 m
- Pep Verification Date
- 2023-11-28
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint684.3196339893107
Circularity ProfileENVEOLI1405010EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 4X front panel
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep CodeENVPEP1405010EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- small touch HMI controller
Range Of ProductHarmony SCU
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Output Attributes
- Discrete Output Current
- 2 A 4 A)5 ms opening contact digital output, 2 A 4 A)2 ms closing contact digital output, 300 mA2 ms fast output (normal mode), 50 mA2 ms fast output (PWM or PTO mode)
- Discrete Output Voltage
- 24 V DC 19.2...28.8 V)transistor, 24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
Discrete Output Number2 fast output (normal mode) source, 8 digital output source
Maximum Output Frequency100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
Input Attributes
- Discrete Input Current
- 7.83 mA fast input, 5 mA digital
- Input Impedance
- 2.81 kOhm, 4.7 kOhm
- Discrete Input Voltage
- 24 V DC sink or source (positive/negative)
Discrete Input Number2 fast input (normal mode) IEC 61131-2 Type 1, 14 digital input IEC 61131-2 Type 1
Maximum Input Frequency100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLE, User replaceable
Overview Attributes
- Device Presentation
- complete product
