Square D 9422A8 Operating mechanism, flange mounted, variable depth, handle mechanism, 12in handle, NEMA 4X enclosure
Square D 9422A8 Operating mechanism, flange mounted, variable depth, handle mechanism, 12in handle, NEMA 4X enclosure
- MPN: 9422A8
- UPC: 785901624905
- PPN: SCH-9422A8
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$754.54/ EA
Description

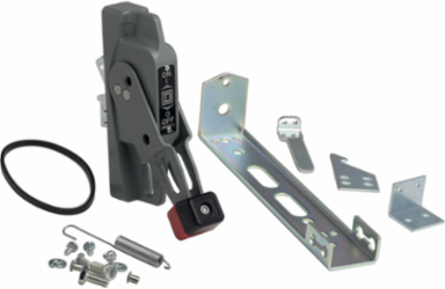

Handle mechanism kits are used with all disconnect switch and circuit breaker installations. The kits contain all parts necessary for mounting the handle to the flange of the enclosure. This handle mechanism is for use with 400A 9422TG1 or 9422TG2 operating mechanisms. Handle is suitable for right or left hand flange mounting. Handle mechanism has a 12 inch handle. Handle mechanism is for use in enclosures rated NEMA 4X (stainless steel). Handle mechanism is UL Component Recognized.
Specifications
Complementary
- Product Destination
- 9422TG1 disconnect switch || 9422TG2 disconnect switch
- Length
- 12 in
Product CompatibilityNEMA 4/4X enclosures
Specificity Of Operatorvariable depth
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Specifications
- Product Destination
- 9422TG2 disconnect switch || 9422TG1 disconnect switch
Product Or Component TypeHandle Mechanism
Contractual warranty
- Warranty
- 18 months
