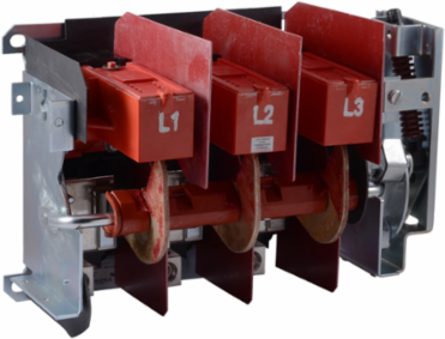

Square D 9422TG1 Flange-Mounted Disconnect Switch, 400A, 600V, Non-Fusible
Square D 9422TG1 Flange-Mounted Disconnect Switch, 400A, 600V, Non-Fusible
- MPN: 9422TG1
- UPC: 785901728009
- PPN: SCH-9422TG1
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified
Features
- Used with all disconnect switch and circuit breaker installations
- Designed for variable depth, flange mounting applications
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Recognized
Complementary Attributes
- Maximum Horse Power Rating
- 75 hp 200 V AC, 125 hp 230 V AC, 250 hp 460 V AC, 350 hp 575 V AC, 50 hp 250 V DC
Line Rated Current400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
- Sustainable Packaging
- No
- Medium Desc
- Operating mechanism, flange mounted, fixed depth, 400A, 600V, no fuse, switch mechanism
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
ServiceabilityNo
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Disconnector Device Typenon-fusible disconnect switch
Package Weight Lbs20.454 kg
Product Mountingflange rod variable depth
Provided Equipmentordered separately
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Mercury Free
- Yes
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
