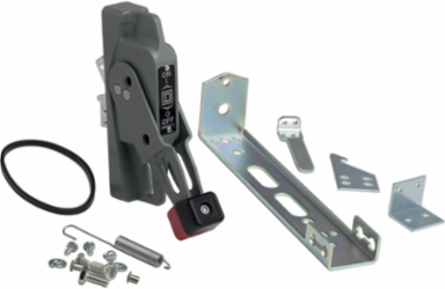

Square D 9422A3 Flange Mounted Handle Mechanism, 4 Inch, NEMA 1/3/3R/4/12 Enclosures
- MPN: 9422A3
- UPC: 785901810339
- PPN: SCH-9422A3
CAD
$290.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. Handle is suitable for right or left hand flange mounting. The handle is 4 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- all circuit breaker mechanisms || disconnect switches (30...200 A)
Product Or Component TypeHandle Mechanism
Complementary
- Product Destination
- all circuit breaker mechanisms || disconnect switches (30...200 A)
- Length
- 4 in
Product CompatibilityNEMA 1/3/3R/4/12 enclosures
Specificity Of Operatorvariable depth
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
