Square D 9422A4 Operating mechanism, flange mounted, variable depth, handle mechanism, 4in handle, NEMA 4X enclosure

Operating mechanism, flange mounted, variable depth, handle mechanism, 4in handle, NEMA 4X enclosure
  • MPN: 9422A4
  • UPC: 785901964155
  • PPN: SCH-9422A4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$522.94/ EA

Description

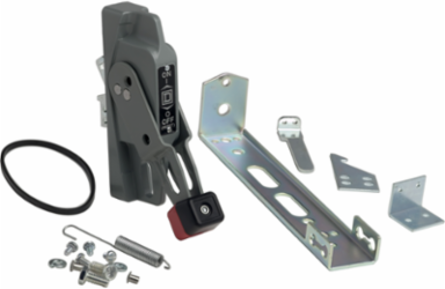

Handle mechanism kits are used with all disconnect switch and circuit breaker installations. The kits contain all parts necessary for mounting the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. The 9422A4 handle mechanism is suitable for right or left hand flange mounting. Handle mechanism has a 4 inch handle. Handle mechanism is for use in enclosures rated NEMA 4 and 4X (stainless steel). All external metal parts are either stainless steel or a chrome plated nonferrous die casting. Handle mechanism is UL Component Recognized.

Specifications

Complementary

Product Destination
disconnect switches (30...200 A)
Length
4 in
Product CompatibilityNEMA 4/4X enclosures
Specificity Of Operatorvariable depth

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Specifications

Product Destination
disconnect switches (30...200 A)
Product Or Component TypeHandle Mechanism

Contractual warranty

Warranty
18 months
