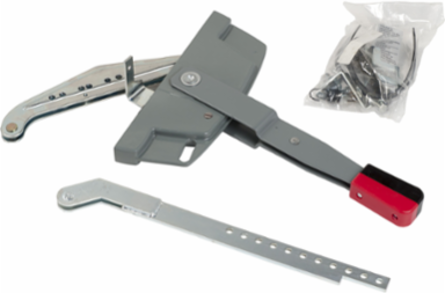

Square D 9422A7 Operating mechanism, flange mounted, variable depth, handle mechanism, 12in handle, NEMA 1, 3R, 4, 12 enclosure

Operating mechanism, flange mounted, variable depth, handle mechanism, 12in handle, NEMA 1, 3R, 4, 12 enclosure
  • MPN: 9422A7
  • UPC: 785901624899
  • PPN: SCH-9422A7

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$610.46/ EA

Description

Handle mechanism kits are used with all disconnect switch and circuit breaker installations. The kits contain all parts necessary for mounting the handle to the flange of the enclosure. This handle mechanism is for use with 400A 9422TG1 or 9422TG2 operating mechanisms. Handle is suitable for right or left hand flange mounting. Handle mechanism has a 12 inch handle. Handle mechanism is for use in enclosures rated NEMA 1, 3, 3R, 4 (sheet steel) and 12. Handle mechanism is UL Component Recognized.

Specifications

Complementary

Product Destination
9422TG1 disconnect switch || 9422TG2 disconnect switch
Length
12 in
Product CompatibilityNEMA 1/3/3R/4/12 enclosures
Specificity Of Operatorvariable depth

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Specifications

Product Destination
9422TG2 disconnect switch || 9422TG1 disconnect switch
Product Or Component TypeHandle Mechanism

Contractual warranty

Warranty
18 months
