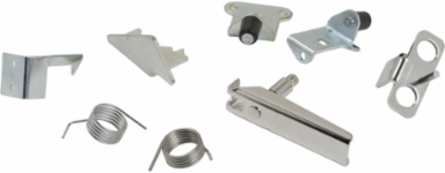

Square D 9423M24 Door Closing Mechanism, Two Point Roller Latch for NEMA 4/12 Enclosures, <39 Inch Opening, 4 Inch Length
- MPN: 9423M24
- UPC: 785901824923
- PPN: SCH-9423M24
CAD
$610.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
9423M door closing mechanisms for single door enclosure with openings up to 60 inches. This two point roller latch kit is for enclosures with doors that are hinged on the left hand side. This kit is designed to be used on NEMA Type 4 and 12 sheet steel enclosures. This kit is for enclosures with a door opening of 39 inches or less. This kit is to be used with 9422A2, 9422A4 or 9422A10 operating handles. This kit can be used on doors with a depth of 0.75 inches or less.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
Depth0.75 in
Physical Attributes
- Door Opening Size
- < 39 in (39 in), < 39 in (39 in)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 9423M
- Sustainable Packaging
- No
- Accessory / Separate Part Destination
- 9422A2, A4 and A10 handles
- Package Weight(Lbs)
- 721.212 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Or Component TypeDoor Closing Mechanism
ReturnabilityNo
Length Total4 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- NEMA 4/12 enclosures Stainless Steel right
Take BackNo
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- Door Closing Mechanism
Range Of Product9423M
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
