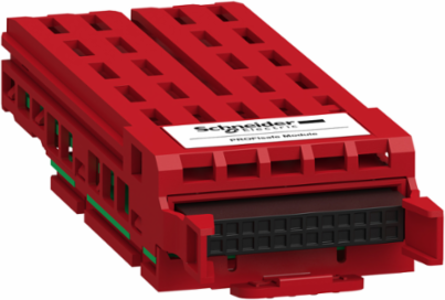

Schneider Electric VW3A3807 PROFIsafe module, Altivar Process ATV900, Altivar 340, for variable speed drives
- MPN: VW3A3807
- PPN: SCH-VW3A3807
CAD
$327.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safety module is an option for variable speed drives of Altivar range. It provides a fail-safe Ethernet connection between the drive and a Safey PLC using the PROFIsafe protocol over PROFINET. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It includes the Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Maximum Speed (SMS) functions. It weights 0,150kg (0,331lb). Altivar Process drives include numerous advanced functions for the more complex applications in each market segment, the safety functions are provided to help protect people and equipment. The safety functions are compliant with the IEC/EN 61800-5-2 standard and the module is TUV NORD certified., Refer to the documentation for proper connection to ensure PROFIsafe functionality. Ideal for segments such as Mining & Metals, Energy & Chemicals, and Consumer Packaged Goods, with a power range from 0.75kW to 2600kW.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia
Depth23.25 mm
Important Information Attributes
- Product Specific Application
- material working, material handling, architecture without suspended/vertical or pulling loads
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03410168435205268, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.09076526691123424, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 77 kg CO2 eq., 77.26612942110488
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Altivar Process ATV900
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 89 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To incorporate safety functions over communication Profinet to the Altivar Speed Drive (ATV900 and ATV340 series) during 20 years.& 10The usage profile taken into account is 100% uptime in use phase.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 109 mm
- Certificate Agency
- EN 61800-5-2
- Package Weight(Lbs)
- 165.000 g
- Customs Code
- 8504909650
Safety FunctionSTO (safe torque off), SS1 (safe stop 1), SLS (safe limited speed), SMS (safe maximum speed)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2500131955764477
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 11.2084494762902
Local Data StatusPublishable
Pre Comm Date2025-03-28
Stocking FlagN
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2406003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2425
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Mounting SupportIntegrated in drive
Product Or Component Typesafety module
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2406003EN
Pep Verification Date2024-06-10
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal41 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 88.8494590442348
- Environmental Disclosure
- ENVPEP2406003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-10
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2406003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2406003EN
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- safety module
Range Of ProductAltivar Process ATV900
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
