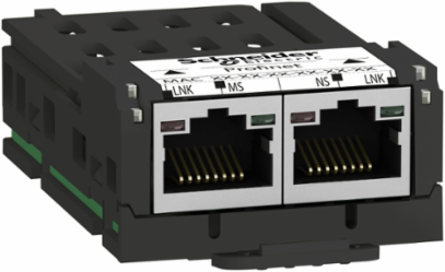

Schneider Electric VW3A3647 Communication module PROFINET V2, Altivar Process ATV900, ATV600, Altivar 340, for variable speed drive
- MPN: VW3A3647
- PPN: SCH-VW3A3647
CAD
$556.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Communication module PROFINET V2, Altivar Process ATV900, ATV600, Altivar 340, for variable speed drive
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France |
|---|
Communications & Management Attributes
| Communication Port Protocol | PROFINET |
|---|
Important Information Attributes
| Bus Profile | PROFIdrive, S2 redundancy |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2301 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Electrical Connection | 2 connectors RJ45, Ethernet |
| Product Or Component Type | communication module |
| Returnability | Yes |
| Transmission Rate | 10/100 Mbps |
| Certificate Agency | IEC 61800-7-201 (CiA 402) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
| Display Type | 1 LED TX/RX (Transmit/Receive port 1), 1 LED TX/RX (Transmit/Receive port 2), 1 LED MS (Module Status), 1 LED NS (Network Status) |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Altivar |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2010006EN |
| Accessory / Separate Part Category | communication accessory |
| Package Weight(Lbs) | 65.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2010006EN |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Environmental Disclosure | ENVPEP2010006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | communication module |
|---|
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
